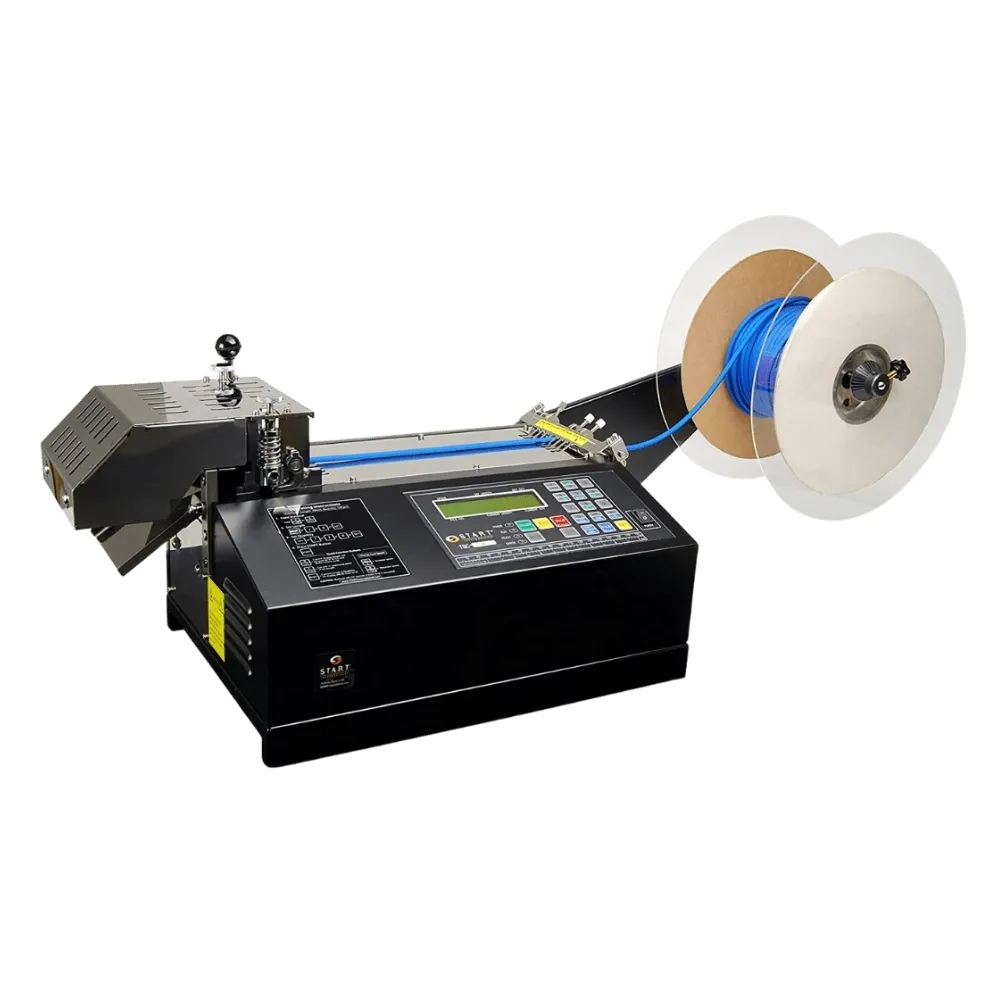

TBC50 Non-adhesive industrial cutting machine
Prepare non-adhesive strips by cold cutting.
Technical specifications
The TBC50 is an programmable length industrial cutting machine designed for the fast and precise cutting of technical tapes and non-adhesive materials such as Velcro, sheaths, straps, tubes, cables or electronic ribbons.
Equipped with a cold-cut HSS steel blade and a comprehensive programming system, it produces consistent cuts at a rate of up to 140 pieces per minute. Its robust design and adjustable pressure rollers ensure high precision, even with thick materials.
The TBC50 is an ideal solution for industrial production lines requiring fast, programmable and reliable cutting.
| Product reference | TBC50 |
|---|---|
| Maximum spool width | 110 mm |
| Maximum coil diameter | 487 mm |
max chuck diameter | 37 to 76 mm |
| Cutting length | 15 to 9999 mm |
| Cutting speed | up to 140 pieces/min (for 55 mm) |
| Main materials | Velcro, threads, tubes, sheaths, straps |
| Blade type | HSS steel – cold cut |
| Dimensions (L × W × H) | 420 × 320 × 480 mm |
| Weight | 18.6 kg |
| Food | AC 110/220 V – 50/60 Hz |
Complete product sheet
TBC50 Industrial Cutting Machine
The TBC50 is an industrial cutting machine designed for the automatic and programmable cutting of technical tapes and non-adhesive materials used in industrial environments.
Thanks to its electronic programming system and stepper motor, it allows for precise and repeatable cuts on a wide variety of materials.
This machine is particularly suitable for companies requiring intensive production of cut parts of constant length.
Programmable length cutting
The TBC50 allows for precise programming of the length of the pieces to be cut.
The user can define:
the cutting length
the number of parts to produce
the unwinding speed
The machine can therefore automatically produce a complete series of identical parts without operator intervention.
Fast and precise cutting
Thanks to its HSS (High Speed Steel) blade and stepper motor, the TBC50 guarantees fast and precise cutting.
It can reach a rate of:
up to 140 pieces per minute for a programmed length of 55 mm.
This performance helps to optimize productivity on production lines.
Compatible with many materials
The TBC50 can cut a wide variety of technical materials:
Velcro and Dual Lock
heat shrink tubing
electronic ribbons
textile straps
plastic tubes
electrical cables and wires
plastic strapping
It can also accept certain thick adhesive tapes with liner.
0
The TBC50 is designed for heavy-duty use in industrial environments.
Its robust structure and mechanical system guarantee:
high reliability
a long lifespan
cutting stability even on thick materials
The machine can cut materials up to 8 mm thick.
Automatic dispensing and cutting
Once programmed, the TBC50 operates fully automatically.
She :
unwinds the material
performs the cutting to the programmed length
Repeat the operation until the defined quantity is reached.
A detection bar automatically stops the machine at the end of production.
Adjustable pressure system
The drive rollers have an adjustable pressure system, allowing the traction to be adapted according to:
the weight of the material
the thickness of the ribbon
the rigidity of the material
This setting ensures a consistent feed and precise cutting.
Reel capacity
The machine can accommodate reels of:
110 mm maximum width
487 mm in diameter
It is also possible to install several rollers on the same hub depending on their width.
Versions available in the TBC50 / TBC-L range
The TBC553-L is part of the TBC range of industrial cutting machines:
TBC50: Cold cutting for technical tapes and non-adhesive materials
TBC50-H: Hot cutting to prevent fraying of textile materials
TBC50-HX: Hot cutting with angled cut
TBC50-S: Cutting machine with photoelectric sensor for label rolls
TBC50-SK: version with sensor and automatic stacking
TBC552-L: Extra-large cutout up to 200 mm
TBC553-L: Extra-large cutout up to 300 mm
TBC554-L: Extra-large cutout up to 400 mm
This range allows the machine to be adapted according to:
the width of the material
the type of cut
the level of automation.
Advantages of the TBC50 automatic cutting machine
The TBC50 was designed to offer an automated, reliable and efficient cutting solution for non-adhesive materials in an industrial environment.
High productivity
The cutting speed allows for the automation of repetitive operations.
It allows:
- to increase the production rate
- to reduce manual interventions
- to ensure a continuous workflow
Programmable cutting
The machine incorporates a digital programming system.
This system allows:
- to produce identical parts with precision
- to easily define cutting lengths
- to automate production cycles
This programming ensures consistent repeatability.
Versatility of materials
The TBC50 is compatible with a wide variety of industrial materials.
It allows you to work with:
- technical ribbons
- textile materials
- films and synthetic materials
- sheaths and non-adhesive materials
This versatility allows for use in numerous applications.
Industrial robustness
The machine is designed for heavy-duty use in an industrial environment.
She asserts:
- excellent wear resistance
- operational stability
- continuous use on production lines
Productivity and performance
- Programmable automatic cutting
- compatible with many technical materials
- high production rate
- precise and repeatable cutting
- designed for heavy industrial use
Industrial cutting of technical materials
The TBC50 is used for cutting various industrial materials to length:
Velcro and Dual Lock
insulating or heat-shrinkable sleeves
electronic ribbons
plastic tubes
textile straps
electrical cables
Industrial applications
The machine is used in several sectors:
electronics industry
technical textile industry
industrial manufacturing
cable production
industrial assembly
Starting up and loading the reel
To use the machine:
Connect the power supply
Install the reel on the unwind bar
Direct the unwinding from the top
Pass the strip between the guides and the rollers
Program the cutting length and quantity
The machine is then ready to operate.
Programming
The digital control panel allows you to define:
cutting length
the number of parts to produce
the distribution speed
The programming interface is simple and intuitive.
Interview
Maintenance must be carried out by qualified personnel.
It is recommended to:
check the blade regularly
clean the drive rollers
check the mechanical components
Spare parts
DERFI provides maintenance and spare parts for the TBC50, including:
cutting blades
drive rollers
electronic components
mechanical parts
The parts can be ordered from the DERFI technical department.
FAQ
What cutting process does TBC50 use?
What roll width is compatible with TBC50?
What lengths are available on TBC50?
What cutting rate is specified for TBC50?
What roll diameter can be fitted to TBC50?
