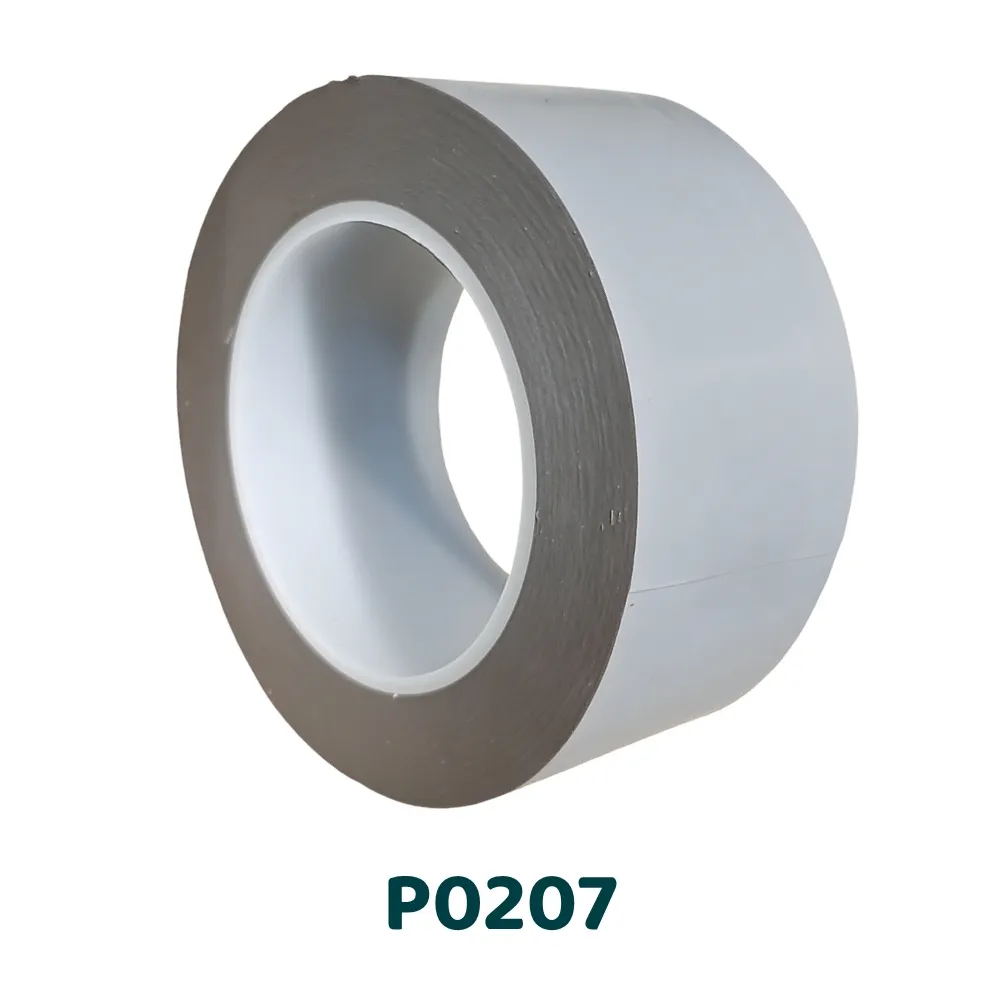

TheP0207is a single-sided adhesive tape made of grey PTFE with silicone adhesive, designed for industrial applications requiring non-adhesion, sliding, electrical insulation, and heat resistance. It is particularly suitable for environments subjected to moderate to high thermal, chemical, and mechanical stresses.
| Characteristic | Value |
|---|---|
| PTFE backing thickness | 0.09 mm |
| Total thickness | 0.130 mm |
| Tape colour | Grey |
| Adhesion | 6 N / 25 mm |
| Tensile strength | 100 N / 5 cm |
| Breakdown voltage | 6 kV |
| Temperature range | -73°C to +260°C |
| Backing | Grey PTFE |
| Glue | Silicone |
A grey PTFE tape designed for high-temperature technical applications
TheP0207is a single-sided adhesive tape made of grey PTFE with silicone adhesive, developed to meet industrial applications where thermal resistance, non-stick properties, and substrate stability are essential. Thanks to its PTFE backing and silicone adhesive mass, it offers excellent chemical resistance, a very low coefficient of friction, and good temperature resistance, making it a particularly suitable solution for demanding environments.
This tape is used for both high-temperature masking and for covering sliding areas, protecting heat sealing bars, or certain electrical insulation applications. Its consistent performance makes it a reliable technical consumable for professionals in packaging, processing, electrotechnics, and industry in general.
An ideal non-stick surface for sliding and heat sealing
The main advantage of theP0207lies in its PTFE backing, recognised for its non-stick properties and very low coefficient of friction. This characteristic helps to limit material sticking, smooth the passage of parts or products, and reduce contamination of contact surfaces.
It is therefore particularly relevant for covering heat sealing bars, slides, guides, or friction areas in industrial equipment. It helps to improve process consistency and limit deposits on technical elements exposed to heat or friction.
A versatile solution for insulation, protection and industrial processes
In addition to its sliding properties, theP0207also offers good dielectric insulation with a breakdown voltage of6 kV. This feature makes it compatible with certain applications for insulating cables, coils or electrical components exposed to heat.
Its temperature resistance of-73°C to +260°Callows it to be used in a very wide range of conditions, in both cold and hot environments, without rapid loss of performance.
A highly non-stick PTFE support
PTFE is one of the most effective materials when it comes to limiting the adhesion of substances and promoting sliding. TheP0207fully benefits from this property.
This allows for:
- reducing the sticking of materials
- limiting surface fouling
- facilitating the sliding of products
- improving the operation of equipment
A silicone adhesive suitable for high temperatures
The silicone adhesive mass of theP0207is designed to maintain its performance in environments subjected to significant heat. It allows the tape to remain stable and perform well in thermal processes.
This allows for:
- use up to 260°C
- good adhesion on heating bars
- better stability of the bond
- compatibility with demanding thermal applications
Excellent chemical resistance
TheP0207has very good resistance to chemical agents, making it particularly interesting in industrial contexts where the tape is exposed to aggressive products or harsh environments.
This allows for:
- better performance in chemical environments
- greater durability in use
- better reliability in processes
- enhanced protection of technical surfaces
Good electrical insulation
With a breakdown voltage of6 kV, theP0207can be used in certain electrical insulation applications requiring a heat-resistant technical tape.
This allows for:
- cable insulation
- coil protection
- better electrical safety
- use in certain electrotechnical environments
Good dimensional stability
The PTFE of theP0207provides good dimensional stability, allowing the tape to maintain its shape and properties even when subjected to heat or repeated stress.
This allows for:
- stable behaviour in processes
- less hot deformation
- better application accuracy
- greater consistency on the line
An excellent solution for non-stick applications
TheP0207is particularly suited to environments where there is a need to prevent materials from sticking to technical surfaces. Its PTFE backing provides a reliable solution to improve process fluidity.
It allows for:
- limiting unwanted adhesion
- reducing deposits on machinery
- facilitating cleaning
- improving the quality of processing operations
A high resistance to heat
With its capability up to260°C, theP0207is perfectly suited for high-temperature applications where a standard tape could not be used sustainably.
It allows for:
- use on heating equipment
- better performance in thermal cycles
- reliable protection of technical surfaces
- adaptation to demanding processes
Good industrial versatility
TheP0207can be used for both sliding and heat sealing, insulation or technical protection. This versatility is a significant advantage for manufacturers.
It allows for:
- equipping multiple types of stations
- streamlining technical consumables
- meeting different needs with a single product
- improving operational flexibility
Better fluidity of equipment
The very low coefficient of friction of PTFE improves movement, reduces certain noises, and optimises the mechanical behaviour of contact areas.
It allows for:
- smoother sliding surfaces
- reduced friction on guides
- limited squeaking
- improved overall machine operation
Productivity and performance
- excellent high-temperature resistance
- very good anti-stick properties
- good chemical resistance
- reliable electrical insulation
- ideal for sliding, heat sealing, and technical protection
Coating for heat sealing bars
TheP0207is particularly suitable for protecting heat sealing bars due to its anti-stick properties and high-temperature resistance. It prevents plastic films from sticking to heating areas and improves process consistency.
It allows for:
- protecting heating blades or bars
- limiting the adhesion of plastic films
- improving sealing quality
- reducing equipment fouling
Coating for sliding surfaces, guides, and friction areas
Thanks to its low coefficient of friction, theP0207can be used to improve sliding on various industrial parts or equipment.
It allows for:
- reducing friction on guiding surfaces
- smoother passage of products
- to reduce certain mechanical noises
- to improve the operational comfort of equipment
Cable, coil and component insulation
TheP0207can also be used in certain electrical insulation applications where good thermal stability and good dielectric strength are required.
It allows for:
- cable insulation
- coil protection
- securing certain electrical areas
- providing additional technical protection
Masking and protection in hot environments
The tape is also suitable for certain technical masking or temporary protection operations in industrial environments exposed to heat.
It allows for:
- protecting sensitive areas
- carrying out thermal masking operations
- improving performance in hot processes
- using a clean and stable tape in harsh environments
