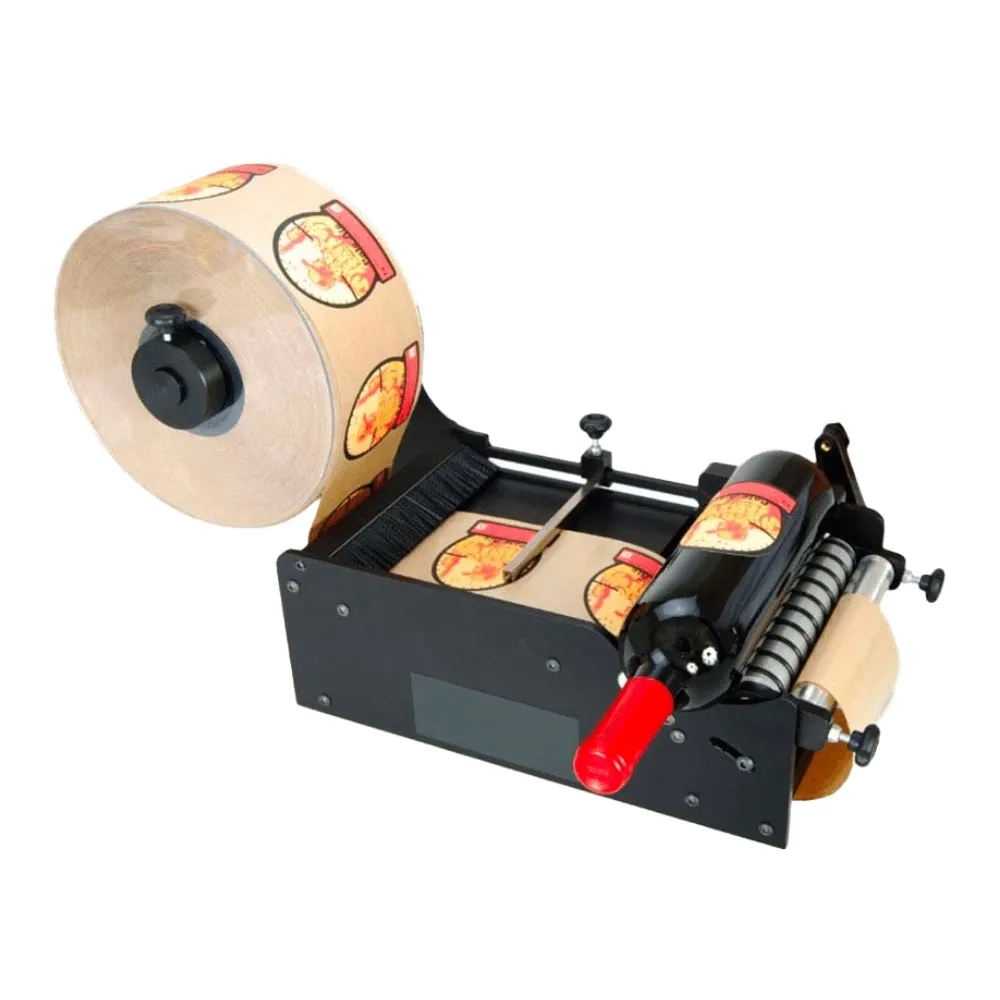

LAB01 – Semi-manual bottle label applicator

Crank-operated label applicator

The LAB01 operates using a hand crank that drives the application rollers.

This simple and effective system allows:

• a quick start

• a specific application

• a high labeling speed for a manual machine.

Integrated liner separator

The liner separation system allows the label to be automatically peeled off the backing.

This mechanism facilitates:

• the distribution of labels

• quick installation

• a clean and consistent application.

Adjustable tension brush

The machine has an adjustable tension brush allowing the pressure exerted on the label to be adapted.

This feature guarantees:

• a uniform application

• better grip

• increased precision during installation.

Compatible with many containers

The LAB01 can accommodate a wide variety of cylindrical containers:

• glass bottles

• plastic bottles

• bottles

• pots

• jars

• cylindrical cans

It accepts containers with a diameter between 13 mm and 165 mm.

Stabilizing accessory for lightweight bottles

An optional stabilizer can be installed to facilitate the labeling of very lightweight containers.

This accessory improves the stability of the container during label application.

Advantages of the LAB01 manual labeler

The LAB01 was designed to offer a simple, precise and economical solution for applying labels to bottles and cylindrical containers.

Quick label application

Labeling is made easier thanks to a manual crank system.

It allows:

• an application in seconds
• a regular pace
• a time saving compared to traditional manual installation

Labeling accuracy

The LAB01 incorporates a precise guidance system.

She guarantees:

• optimal label alignment
• a uniform application on each product
• consistent labeling quality

The tension brush also ensures even application.

Economic solution

The machine provides an accessible alternative to automated equipment.

It allows:

• to obtain a professional result
• to limit investments
• to improve productivity without full automation

Industrial robustness

The LAB01 is designed to last over time.

She asserts:

• excellent resistance thanks to anodized aluminum
• stability during use
• durability suitable for professional environments

Productivity and performance

• precise application of labels onto bottles
• ideal for artisanal productions
• quick and even application
• robust and durable machine
• simple and intuitive to use

Bottle labeling

The LAB01 is used to apply labels to:

• wine bottles

• beer bottles

• bottles of champagne

• cosmetic bottles

• food bottles.

Professional applications

The machine is used in various sectors:

• agri-food industry

• handcrafted production

• cosmetic

• beverage packaging

• packaging of liquid products.

Machine installation

The LAB01 packaging contains:

• the machine

• two guide bars

• two hubs

• a crank.

Start by attaching the crank to the drive roller.

Roller adjustment

Adjust the roller spacing according to the bottle size using the adjustment knobs.

• closely spaced rolls for small bottles

• Rollers spaced apart for large bottles.

Label installation

Place the reel on the designated support.

Pass the label strip:

• under the tension brush

• under the dividing bar

• under the drive rollers.

Next, test the first label by turning the crank.

Interview

The LAB01 requires very little maintenance.

Simply clean the machine regularly with a dry cloth to remove:

• dust

• glue residue

• paper particles.

Spare parts

All parts of the LAB01 are replaceable.

DERFI offers:

• drive rollers

• guide bars

• hubs

• mechanical components

Spare parts can be ordered directly from the DERFI technical department.
