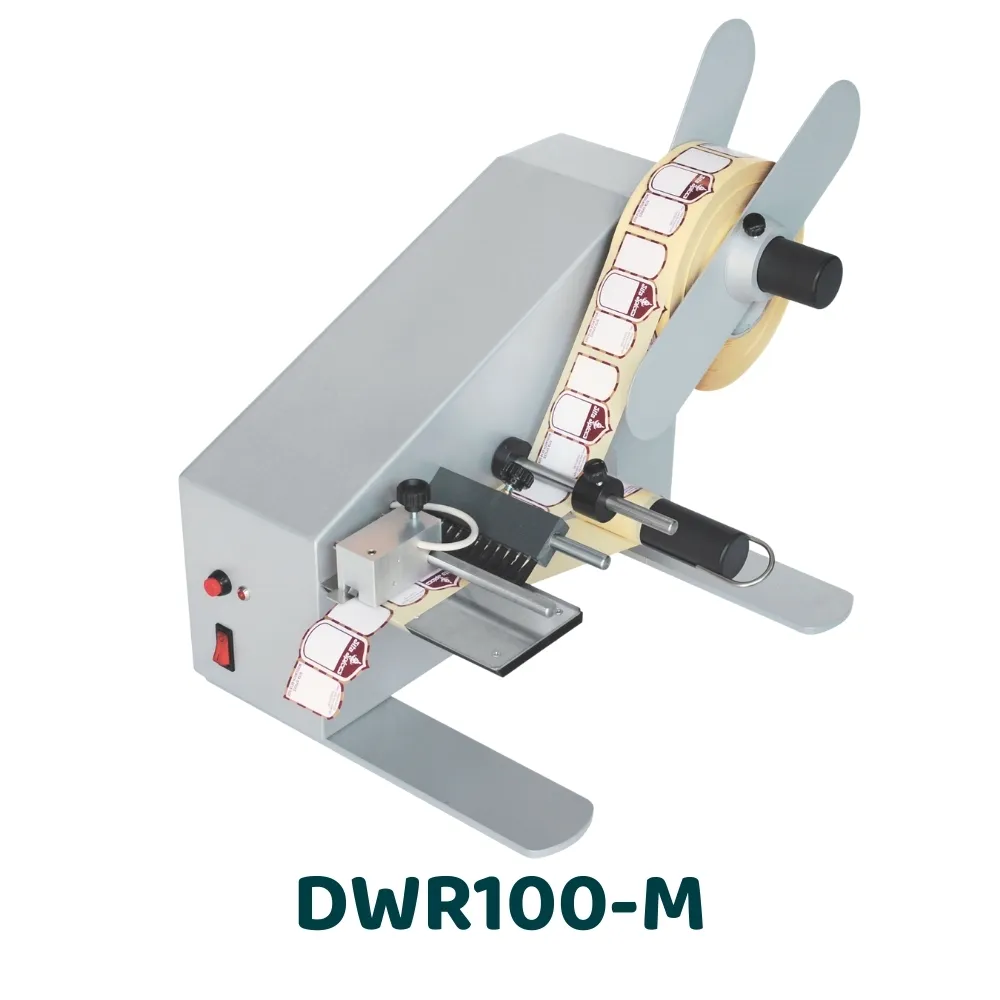

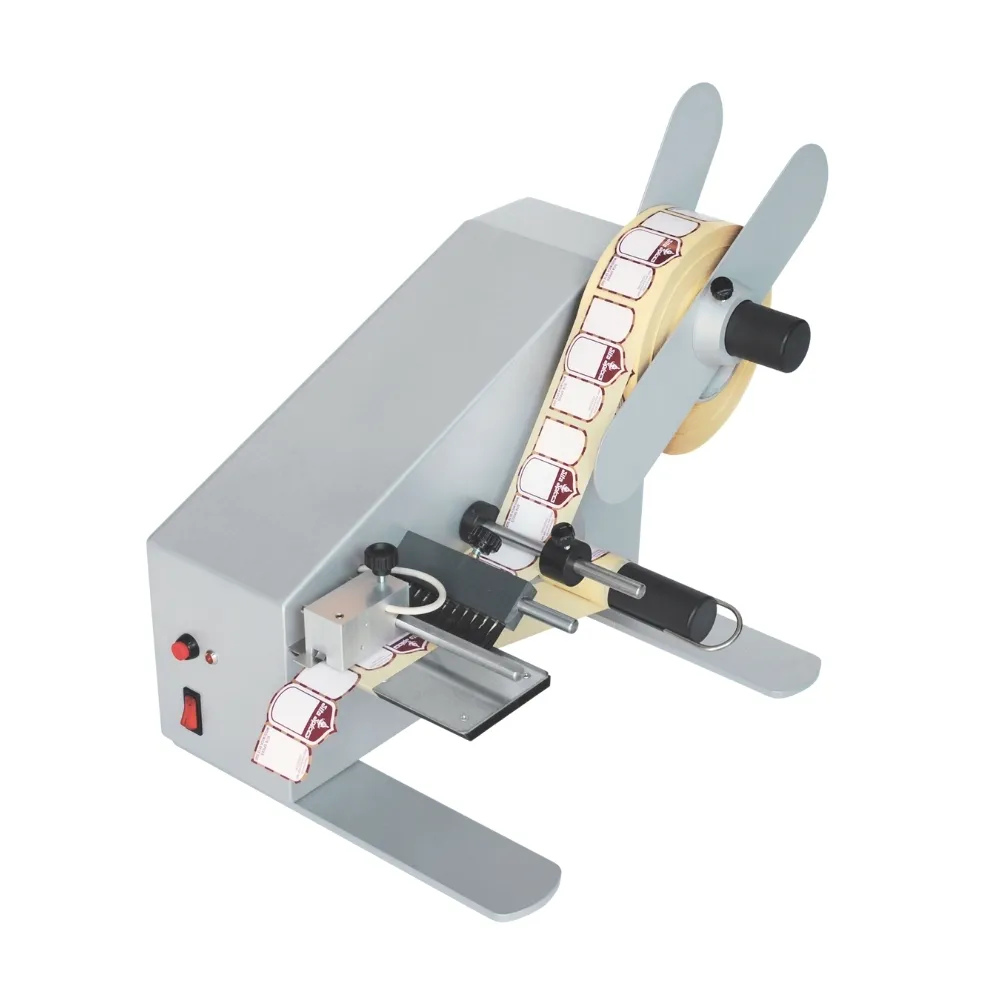

DWR100-M DWR-M Range – Automatic Transparent Label Dispensers
Distribuez les étiquettes transparentes par détection d’épaisseur.
Technical specifications
The DWR100-M and DWR200-M are industrial automatic label dispensers designed for the precise dispensing of transparent or hard-to-detect labels.
Thanks to their electromagnetic sensors, they ensure reliable thickness-based detection, guaranteeing a clear separation between the label and its liner, even when the colors are similar.
The DWR-M series stands out for its ability to handle complex substrates, its high speed of up to 15 m/min, and its fully automated operation. Robust, precise, and versatile, it integrates perfectly into demanding industrial environments.
Reference | DWR100-M | DWR100-MB | DWR100-MC | DWR100-M-BC | DWR200-M | DWR200-MB | DWR200-MC | DWR200-M-BC |
|---|---|---|---|---|---|---|---|---|
| Maximum coil width (mm) | 100 mm | 100 mm | 100 mm | 100 mm | 200 mm | 200 mm | 200 mm | 200 mm |
| chuck diameter (mm) | 38 to 110 mm | 38 to 110 mm | 38 to 110 mm | 38 to 110 mm | 38 to 110 mm | 38 to 110 mm | 38 to 110 mm | 38 to 110 mm |
| Maximum coil diameter (mm) | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm | 300 mm |
| Distribution length (mm) | 15 to 600 mm | 15 to 600 mm | 15 to 600 mm | 15 to 600 mm | 15 to 600 mm | 15 to 600 mm | 15 to 600 mm | 15 to 600 mm |
| Speed | 10 to 15 m/min | 10 to 15 m/min | 10 to 15 m/min | 10 to 15 m/min | 10 to 15 m/min | 10 to 15 m/min | 10 to 15 m/min | 10 to 15 m/min |
| Dimensions (mm) | 410 × 297 × 400 | 410 × 297 × 400 | 410 × 297 × 400 | 410 × 297 × 400 | 410 × 376 × 400 | 410 × 376 × 400 | 410 × 376 × 400 | 410 × 376 × 400 |
| Weight (kg) | 9.7 kg | 9.7 kg | 9.7 kg | 9.7 kg | 11 kg | 11 kg | 11 kg | 11 kg |
Fiche produit complète
Automatic transparent label dispenser DWR100-M / DWR200-M
The DWR100-M and DWR200-M are automatic label dispensers designed for the precise and repetitive dispensing of transparent or hard-to-detect labels in industrial environments. Thanks to their electromagnetic sensor technology, they enable reliable detection based on material thickness.
Particularly suited to complex substrates, these dispensers ensure regular dispensing, even when the contrast differences between the label and its substrate are small.
High-precision electromagnetic detection
The DWR-M uses an advanced system that allows:
analysis of the differences in thickness between the label and the liner
reliable detection of transparent labels
a function independent of colors or contrasts
consistent distribution even on complex media
This technology guarantees optimal precision in demanding environments.
Automatic and continuous dispensing
The operation is fully automated:
the label is automatically presented to the operator
The next one is distributed as soon as the previous one is withdrawn.
the workflow remains continuous and fluid
No manual intervention is required
This system allows for the optimization of production rates.
Séparation automatique du liner
The DWR-M incorporates a complete system:
a separating blade
a recovery winder
optimized support guidance
Result :
clean separation of the label
clean workstation
reduction of visible waste
Compatibility and capacity
The DWR-M accepts:
widths of 100 mm (DWR100-M) or 200 mm (DWR200-M)
labels from 15 to 600 mm
reels up to 300 mm in diameter
chucks from 38 to 110 mm
They are compatible with a wide variety of technical and industrial labels.
Key Benefits
Reliable detection of transparent labels
High-precision automated dispensing
Automatic liner separation
Contrast-independent operation
Solution adapted to intensive industrial environments
Robust, precise and efficient, the DWR-M are an ideal solution for the distribution of complex labels in industrial production.
Label dispensers for complex media
The DWR-M devices are specifically designed for distributing transparent or difficult-to-detect labels using conventional optical systems. Their technology enables reliable detection based on material thickness.
A tool dedicated to demanding industrial applications
DWR-M products are used for:
transparent labels
technical labels
barcodes
product packaging
industrial identification
Solution suitable for intensive environments
Thanks to their robust design, they allow:
a continuous, high-speed distribution
a reduction in detection errors
an improvement in productivity
reliable use in industrial environments
Available versions
Standard version: mains powered
Version B (battery): Battery life up to 5 hours
Version C (counter): tracking the number of labels
BC Version: battery + meter
Advantages of DWR-M Label Dispensers
The DWR-M offers an advanced solution for the distribution of complex labels, combining precision, automation and industrial robustness.
Detection of transparent labels
thickness-based electromagnetic technology
color-independent operation
Reliable detection even on complex substrates
high distribution accuracy
Automated distribution and time saving
continuous distribution without intervention
automatic label presentation
reduction of manual handling
improvement in production rate
High-speed industrial
speed up to 15 m/min
suitable for intensive production lines
optimized workflow
Clean workstation
automatic liner separation
winding machine retrieval
waste reduction
better job organization
Robustness and reliability
anodized aluminum structure
wear resistance
stable operation
suitable for intensive use
Versatility and compatibility
wide coil compatibility
chucks from 38 to 110 mm
widths 100 mm or 200 mm
compatible with technical labels
Productivity and performance
High-precision automatic dispensing
reliable detection of complex labels
reduction of production errors
suitable for demanding industrial environments
Using DWR-M Label Dispensers
The DWR-M are designed for the automatic distribution of technical labels at production, packaging and logistics stations.
Main applications
transparent labels
technical labels
barcodes
product packaging
part identification
Business sectors
logistics and warehousing
manufacturing industry
packaging
electronic
pharmaceutical industry
Starting up and loading the reel
Installation is simple:
install the spool on the support
pass the strip under the sensor
separate the liner and direct it towards the collector
fix the liner
turn on the machine
No complex sensor adjustments are required thanks to automatic detection.
Interview
DWR-M products require little maintenance:
regular cleaning
visual inspection of components
checking for proper operation
Spare parts and maintenance
DERFI offers all spare parts for the DWR-M range:
electromagnetic sensors
rolls
electronic components
mechanical parts
The technical department also provides:
maintenance
the repair
the supply of replacement parts
These services guarantee the performance and longevity of your equipment in an industrial environment.
FAQ
Que signifient les versions B, C et BC ?
Quelle largeur de bobine est compatible avec DWR100-M ?
Quelles longueurs sont prévues sur DWR100-M ?
Quelle vitesse de dévidement est indiquée pour DWR100-M ?
Quel diamètre de bobine peut-on installer sur DWR100-M ?
