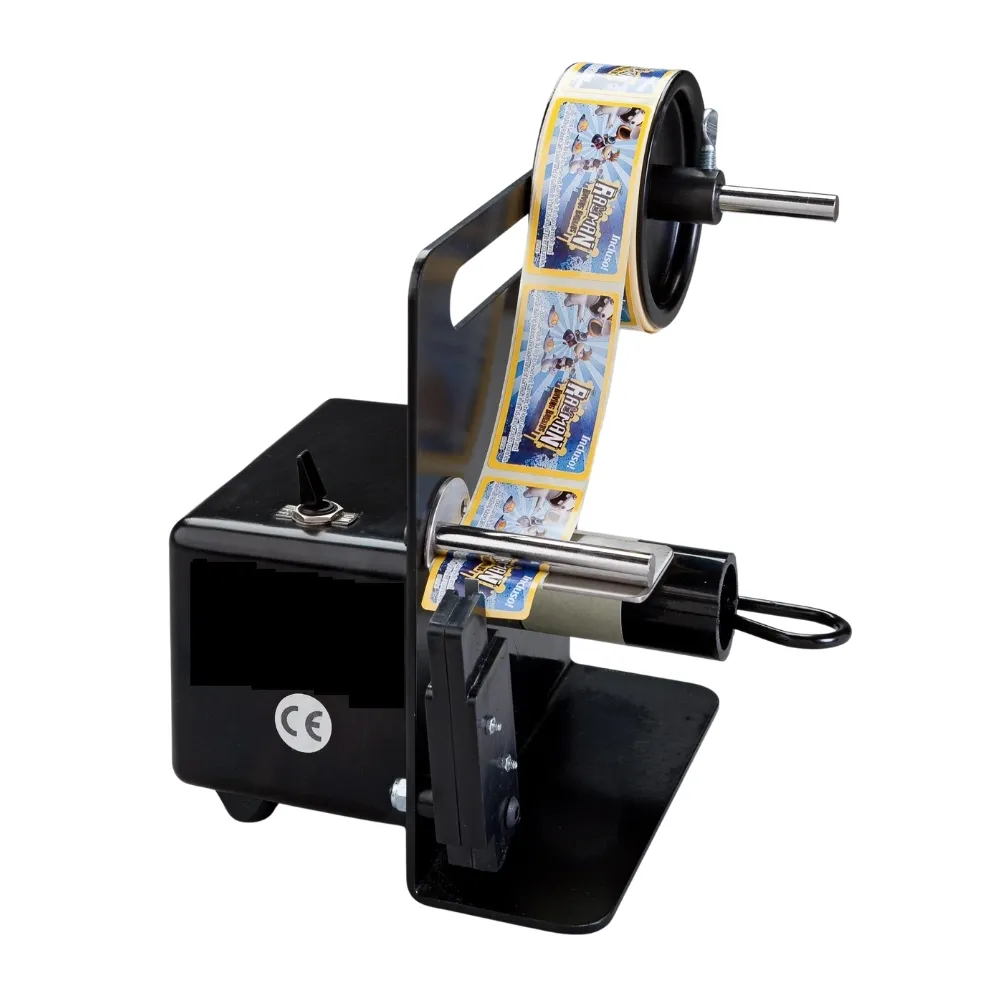

DU25 – Automatic Transparent & Opaque Label Dispensers with Sensor Arm

Label dispensers for industrial applications

The DU25, DU45 and DU60 are designed for the rapid distribution of self-adhesive labels in an industrial environment, with a simple and reliable mechanical system.

A tool dedicated to labeling operations

These dispensers are used for:

• the application of transparent labels to products

• identification of industrial parts

• Packaging and packing labeling

• the application of labels to boxes and parcels

• logistics labeling

Solution adapted to industrial environments

The DU25/45/60 range allows:

• a rapid and organized distribution

• a reduction in manual handling

• an improvement in productivity

• a clean workstation thanks to the liner collector

Simplicity and efficiency

The DU25, DU45 and DU60 are designed to offer:

• a smooth and continuous distribution

• an ideal solution for transparent labels

• simple and intuitive to use

• adaptability to different formats thanks to the three widths

Advantages of DU25, DU45 & DU60 label dispensers

The DU25, DU45 and DU60 were designed to offer a simple, reliable and efficient solution for the distribution of transparent or opaque self-adhesive labels in an industrial environment.

Thanks to their mechanical probe detection system and robust design, these unwinders facilitate the operator's work and improve productivity on repetitive labeling stations.

Automated distribution and time saving

The main advantage of the DU25/45/60 range lies in its automated dispensing system using a mechanical sensor:

• The label is automatically separated from its liner

• A new label is presented after each removal.

• continuous and regular distribution

• Reduction of manual handling

The operator no longer needs to peel off the labels one by one, which saves time and improves efficiency at the workstation.

Mechanical detection ideal for transparent labels

Unlike optical detection systems, the DU range operates using an adjustable mechanical probe, which allows:

• A reliable distribution of transparent labels

• An adaptation to different label formats

• A simple adjustment of the stroke according to the length of the thumbnails.

This system guarantees consistent distribution even with labels that are difficult to detect optically.

Automatic liner separation and clean workstation

The DU25/45/60 unwinder incorporates an automatic recovery of the backing film system.

The liner is:

• automatically separated from the label

• directed towards a retrieval reel

• automatically rewinds during use

This device helps to maintain a clean and organized work area, while preventing the accumulation of waste around the labeling station.

Ease of use and ergonomics

The DU25, DU45 and DU60 dispensers are designed for simple and intuitive use:

• Can be used with one hand

• Quick coil installation

• Easy adjustment of the mechanical probe

Their compact size and light weight also make it easy to move the device from one workstation to another.

Robustness and industrial stability

The DU25/45/60 distributors are designed to withstand demanding industrial environments:

• robust and durable structure

• Resistance to wear and repeated handling

• Retaining flanges ensuring coil stability

This design ensures a smooth and stable distribution even during intensive use.

Versatility and reel capacity

The DU25 – DU45 – DU60 range offers broad compatibility with different roll formats:

• Three widths available: 63 mm, 114 mm and 152 mm

• Maximum outer diameter: 225 mm

• Standard chuck: 76 mm

This versatility allows the dispenser to be easily adapted to the different consumables used on production lines.

Productivity and performance

• Automatic dispensing of transparent or opaque labels

• Direct presentation of the label ready to be applied

• Reduction of repetitive handling

• Suitable for industrial labeling stations

Simple, robust and efficient, the DU25, DU45 and DU60 provide a reliable solution for optimizing the distribution of self-adhesive labels in industrial environments.

Use of DU25, DU45 & DU60

The DU25/45/60 are designed for the automatic dispensing of roll labels at production, packaging, and logistics stations. Once the roll is installed, the device automatically presents the next label as soon as the previous one is removed.

Setting up and loading the reel

1. Place the spool on the hub with the unwinding direction upwards

2. Tighten the knob on the rear rod to secure the spool

3. Cut off the ends of the labels and the liner

4. Pass the belt under the first drive roller

5. Position the strip between the metal washers of the second roll

6. Separate the first label from its liner, then pass the label under the last roller, between it and the recovery surface.

7. Guide the liner towards the lower reel and secure it with the retaining rod.

8. The dispenser is ready

Using the label dispenser

1. Plug in the device and then turn it on with the ON/OFF button.

2. Retrieve the first label: the next one will appear automatically.

3. Adjust the mechanical probe to set the stroke and adapt to the length of the labels

Adjustment and maintenance

• Reduced maintenance thanks to mechanical operation

• Regularly check that the liner is properly guided and rewound.

• If needed, DERFI can supply parts and provide maintenance/repair.

Spare parts

DERFI offers spare parts for the DU25, DU45 and DU60 (mechanical probe, guide components, drive parts, liner recovery elements, etc.), available on request to ensure the continuity of your production.

Our technical service can also provide:

• maintenance and diagnosis

• Repairing your roll

• The supply of replacement parts suitable for the model (DU25 / DU45 / DU60)
