LDX6 - High-speed automatic label dispenser

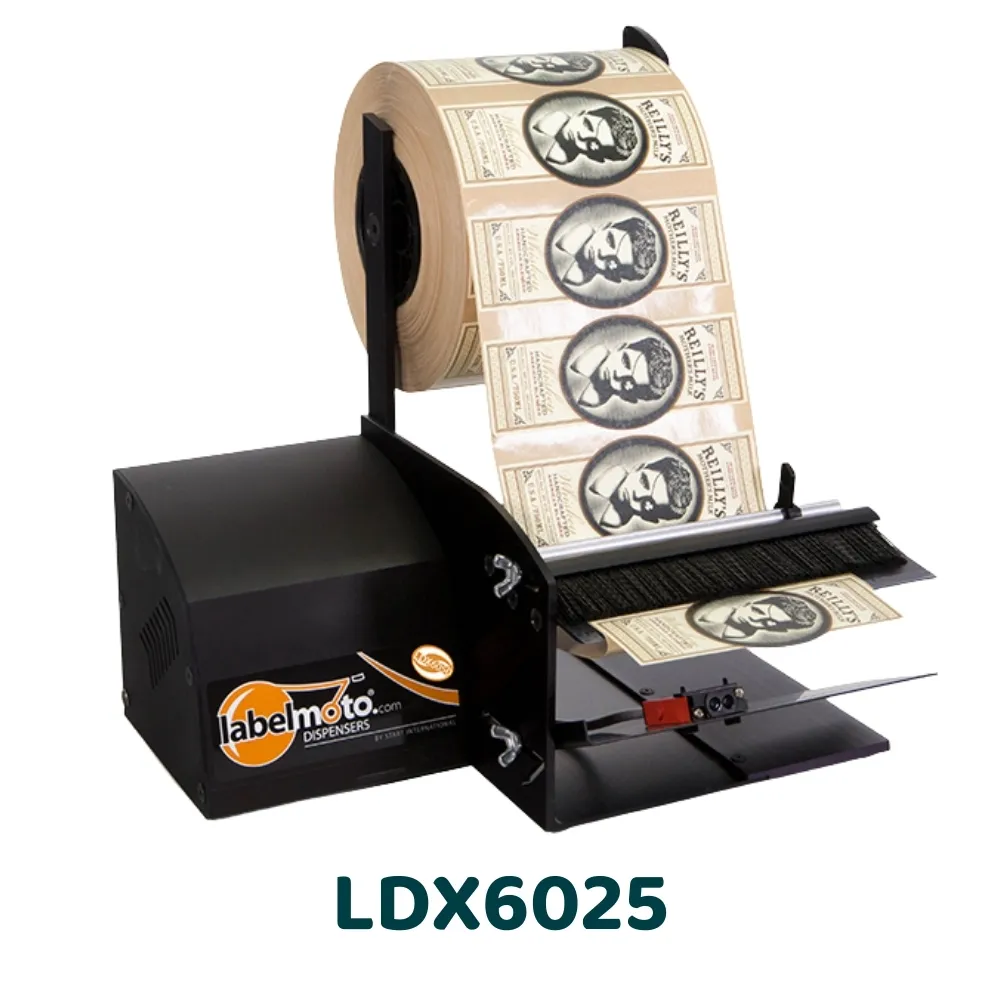

LDX6025, LDX6050 & LDX6100 Industrial Automatic Label Dispensers

The LDX6025, LDX6050, and LDX6100 are high-speed automatic dispensers designed for the rapid dispensing of wide and short opaque self-adhesive labels in industrial environments. Their system automatically separates the adhesive label from its protective liner to reduce operator workload and streamline labeling operations.

Robust and reliable, these dispensers are made of anodized aluminum to withstand wear and the stresses of intensive use. They are a particularly suitable solution for labeling stations operating at high speeds.

Automatic and high-speed distribution

The LDX6025, LDX6050 and LDX6100 ensure automatic and continuous label dispensing. As soon as one label is retrieved, the next one is immediately presented to the operator.

Three distribution speeds are available:

• LDX6025: 5.1 cm/s

• LDX6050: 10 cm/s

• LDX6100: 19.9 cm/s

This diversity allows the distributor to be precisely adapted to the production rate requirements of each production environment.

Automatic liner separation

The main obstacle to the rapid retrieval of self-adhesive labels is often their separation from the protective film. The LDX6025, LDX6050, and LDX6100 perform this separation automatically.

This system allows:

• to present the label ready for application

• to automatically retrieve the blank liner

• to limit manual movements

• to maintain a clean and organized workspace

This automation represents a real time saving for operators at intensive labeling stations.

Precise photoelectric detection

The LDX6 are equipped with a photoelectric detection cell which plays a central role in the regularity of distribution.

This cell allows:

• to detect each label individually

• to automatically trigger the output of the next one

• to precisely adjust the length of the dispensed label

• to adapt the detection point according to the formats used

The LDX6025, LDX6050 and LDX6100 models can therefore dispense labels from 3 to 152 mm in length.

Compatibility and capacity

LDX6 distributors accept:

• labels from 6 to 178 mm wide

• reels up to 310 mm in diameter

• a standard 76 mm chuck

They are particularly suited to wide and short roll labels, used in many industrial applications.

Key Benefits

• high-speed automated label dispensing

• automatic liner separation

• precise photoelectric detection

• robust anodized aluminum structure

• compatibility with wide roll labels

• high-performance solution for production, logistics and packaging

Fast, robust and precise, the LDX6025, LDX6050 and LDX6100 provide a reliable solution for optimizing labeling stations in industrial environments.

Automatic dispensers for wide and short labels

The LDX6025, LDX6050, and LDX6100 are primarily designed for the rapid and repetitive dispensing of short and wide adhesive labels. Their design effectively meets the requirements of industrial environments demanding high throughput and consistent dispensing.

These characteristics make it a particularly suitable solution for intensive labeling lines.

Tools dedicated to industrial labeling operations

The LDX6025, LDX6050 and LDX6100 are used in many industries requiring fast and accurate dispensing of self-adhesive labels.

They are found in particular for:

• barcode application

• the labeling of postal parcels on shipping lines

• Indicative marking in pharmaceutical and medical products

• Food industry labeling for packaging, bottles and cans

• the information on perfume bottles

Available versions

• Standard version
  • For standard opaque labels.
• Version C
  • Suitable for transparent or low-contrast labels.
• Version T
  • Allows for the counting of distributed labels.
• CT Version

  • detection for transparent

  • integrated counter

These different versions allow the dispenser to be adapted to the consumables and specific constraints of the workstation.

Voltage regulation and distribution stability

The LDX6025, LDX6050 and LDX6100 are equipped with an adjustable tension brush.

This brush allows you to:

• to adjust the coil output pressure

• to adapt the machine to the weight and size of the roller

• to stabilize the distribution

• to ensure a smooth process

The high-torque motor also contributes to the overall stability of the distribution, even with large coils.

Advantages of the LDX6025, LDX6050 & LDX6100 automatic label dispensers

The LDX6025, LDX6050, and LDX6100 were designed to offer a fast, precise, and ergonomic solution for dispensing opaque self-adhesive labels in industrial environments. Their complete automation improves working time, operator comfort, and production rate.

High-speed distribution

The primary advantage of the LDX6 range lies in its label output rate. Each model has its own dispensing speed, allowing it to cover multiple production levels.

This speed allows for:

• a considerable time saving

• improved flow continuity

• a reduction of downtime

• an adaptation to large-scale industrial production

Fully automated distribution

The distribution system is fully automated.

This automation allows:

• to retrieve a thumbnail effortlessly

• to see the following one appear automatically

• to significantly reduce repetitive handling

• to improve the operator's working comfort

Distribution accuracy

Thanks to the adjustable photoelectric detection cell, the LDX6025, LDX6050 and LDX6100 ensure excellent dispensing accuracy.

This design allows for:

• to adapt the dispenser to different label lengths

• to maintain good regularity

• to improve presentation accuracy

• to better meet the constraints of diverse applications

Clean workstation

The automatic liner separation and recovery system allows for:

• to avoid the accumulation of waste on the work surface

• to maintain a cleaner environment

• to improve the ergonomics of the workstation

• to streamline labeling operations

Industrial robustness

The LDX6s are designed in anodized aluminum to withstand industrial stresses.

This manufacturing process allows for:

• very good wear resistance

• excellent durability

• an adaptation to intensive environments

• reliable long-term operation

Large reel capacity

The LDX6025, LDX6050 and LDX6100 can accommodate:

• reels up to 178 mm wide

• reels up to 310 mm in diameter

This capability allows:

• to use larger rolls of labels

• to reduce coil changes

• to improve online productivity

Key benefits for industrial production

• High-speed automatic distribution

• reduction of manual handling

• automatic liner separation

• high detection accuracy

• robust industrial structure

• good reel capacity

• Improved distribution stability thanks to the adjustable brush and high-torque motor

The LDX6025, LDX6050 and LDX6100 thus constitute a high-performance, fast and durable labeling solution for operators whose business requires electrical distribution of wide and short self-adhesive labels.

Using the LDX6025, LDX6050 & LDX6100 automatic label dispensers

The LDX6025, LDX6050, and LDX6100 are designed for the automatic dispensing of opaque self-adhesive labels on rolls in production, packaging, and logistics environments. Their simple operation allows for quick setup and smooth use in industrial settings.

Starting up and loading the reel

Installing the dispenser is simple:

1. plug the device into the mains

2. place the spool on the hub provided for this purpose

3. Position the spool so that it unwinds from the top

4. Slide the guide bar to the end of the spool and tighten the knob.

5. grasp the label strip and guide it under the tension brush

6. tighten the liner by raising the hub

7. detach the first label from the interleaving film

8. guide the liner under the recovery surface so that it makes a half turn

9. place the interleaving film on the recovery roll

10. Secure the liner strip with the locking rod provided.

11. Next, adjust the locking key located on the brush.

12. Finally, adjust the pouring pressure with the metal knob on the brush.

13. Position the photoelectric detection cell to determine the distribution length

The device is then ready for use.

Label application

To use the vending machine:

1. Turn on the device's power supply using the ON/OFF button

2. allow an initial distribution to occur automatically

3. retrieve the piece of label shown

4. Let the machine automatically dispense the next one after it is picked

This system allows for continuous, fast and regular distribution, ideal for repetitive operations.

Maintenance and cleaning

The LDX6025, LDX6050 and LDX6100 require very little maintenance.

It is simply advisable to:

• Wipe with a dry cloth if the device is used in a dirty area.

• Regularly check that the liner is passing smoothly

• check the guidance and recovery elements

This minimal maintenance helps to maintain regular and reliable operation.

Spare parts and maintenance

DERFI has all the spare parts necessary for the proper functioning of the LDX6025, LDX6050 and LDX6100.

The technical department also provides:

• the delivery of parts

• component repair

• distributor maintenance

These services guarantee the continuity of your production and the optimal performance of your automatic label dispenser in an industrial environment.
