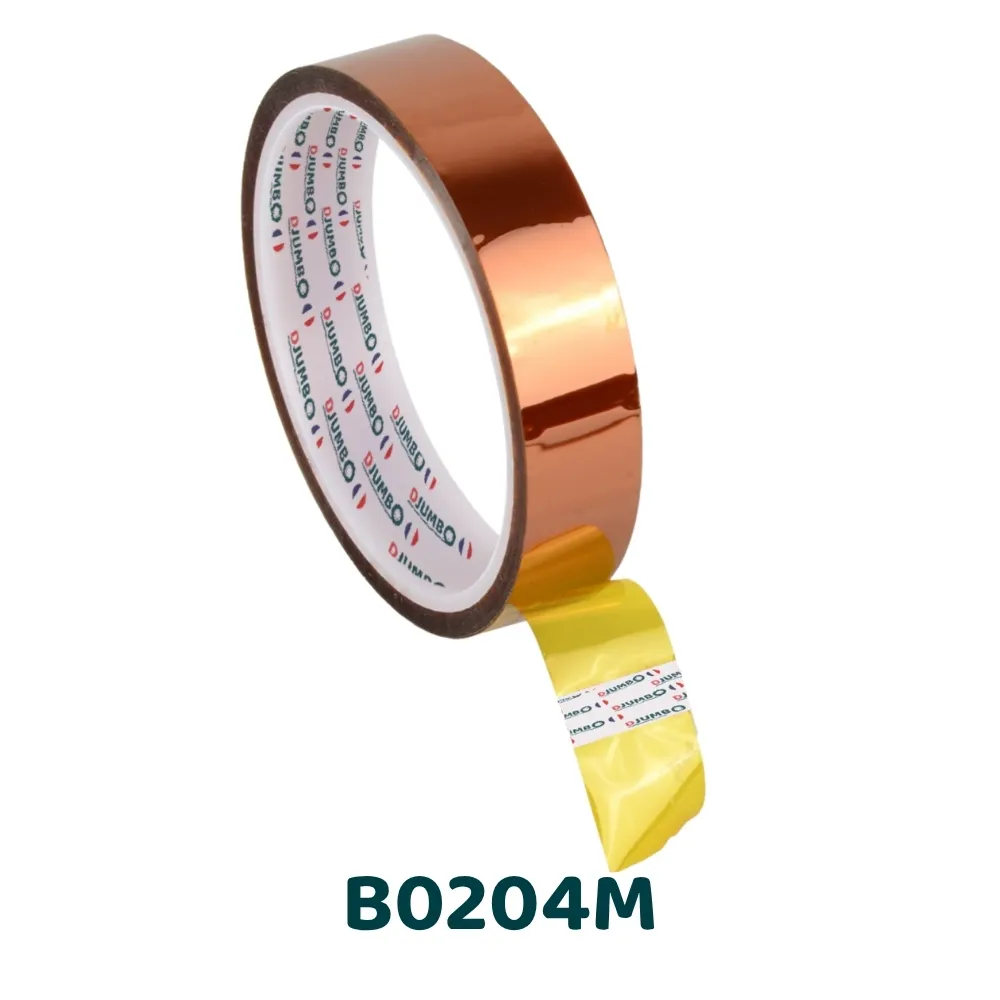

TheB0204Mis a single-sided adhesive tape made of amber polyimide with high temperature silicone adhesive, designed for electrical insulation, technical masking and protection in environments subjected to high thermal and chemical stress. It is distinguished by very high temperature resistance, excellent dielectric rigidity and great mechanical strength.
| Characteristic | Value |
|---|---|
| Product reference | B0204M |
| Total thickness | 180 µ |
| Backing thickness | 125 µ |
| Tape colour | Amber |
| Adhesive mass | High temperature silicone |
| Backing type | Polyimide |
| Adhesive strength on steel | 9.5 N / 25 mm PSTC 1 |
| Tensile strength | 575 N / 25 mm |
| Elongation | 50 % |
| Dielectric strength | 15 kV |
| Temperature resistance | -73°C to +260°C |
A high-performance polyimide tape for extreme environments
TheB0204Mis a single-sided technical tape made of amber polyimide with high-temperature silicone adhesive, designed to meet the demands of the most severe industrial environments. It is intended for applications where heat, chemical agents, mechanical stresses, and electrical insulation requirements necessitate the use of a high-level technical adhesive.
Thanks to the combination of a thick polyimide backing and a silicone adhesive mass, theB0204Moffers excellent thermal stability and very good long-term reliability. It is suitable for both high-temperature masking operations and electrical and electrotechnical component insulation applications.
A preferred solution for electrical insulation
TheB0204Mfeatures a high dielectric strength of15 kV, making it particularly suitable for applications where electrical safety is essential. Its polyimide backing is known for combining thinness, flexibility, high thermal resistance, and excellent insulating performance.
It thus constitutes a highly relevant tape for the insulation of coils, motors, transformers, or capacitors, as well as for numerous applications in electronics and electrotechnics.
A tape suitable for technical masking and thermal processes
TheB0204Mis also suitable for high-temperature masking operations, particularly in electronics, powder coating, or certain phases of welding. Its excellent heat resistance, dimensional stability, and good chemical resistance allow it to remain effective even when the process becomes demanding.
It can thus be used in processes where a standard tape would not retain its mechanical or insulating properties.
A very high temperature resistance
TheB0204Mis designed to withstand extreme temperatures, with a usage range of-73°C to +260°C. This performance makes it compatible with particularly harsh thermal environments.
This allows for:
- use in very hot processes
- good stability over significant thermal cycles
- better reliability in extreme environments
- adaptation to demanding industrial applications
Excellent electrical insulation
With a dielectric strength of15 kV, theB0204Mpositions itself as a particularly effective tape for electrical insulation applications.
This allows for:
- isolating sensitive components
- securing electrical applications
- protecting coils, motors, and transformers
- improving the reliability of technical assemblies
A robust and stable polyimide backing
Polyimide is one of the most efficient substrates for heat-exposed technical applications. In this 180 µ version, it also offers good mechanical robustness.
This allows for:
- high abrasion resistance
- good tear strength
- puncture resistance
- excellent dimensional stability
A high-temperature silicone adhesive
The silicone adhesive mass of theB0204Mretains its properties in severe thermal environments and allows the tape to stay in place without excessive transfer or rapid loss of performance.
This allows for:
- good performance in hot environments
- better bonding stability
- compatibility with thermal processes
- reliable application in technical operations
Good chemical resistance
TheB0204Mexhibits excellent resistance to solvents and chemical agents, which broadens its application range in industrial environments.
This allows for:
- better performance against aggressive products
- greater longevity of use
- more reliable use in processes
- better industrial versatility
A thin yet conformable film
Despite its robustness, theB0204Mremains a thin and conformable product, making it easier to apply in tight areas or on components with technical geometry.
This allows for:
- a more precise application
- an adaptation to complex shapes
- an integration on technical components
- a better quality of application
An ideal solution for very high temperature applications
TheB0204Mis designed for environments where heat excludes the use of standard tapes. It maintains its performance under very severe conditions and meets the needs of industries seeking reliability and stability.
It allows for:
- reliable hot masking
- isolating components exposed to heat
- maintaining performance over time
- improving the safety of technical operations
A very high level of electrical safety
Its high dielectric strength is a major advantage in all applications related to electronics, electrotechnics, or winding.
It allows for:
- excellent electrical insulation
- reliable protection of systems
- securing sensitive applications
- better robustness of technical assemblies
Excellent mechanical resistance
TheB0204Mcombines finesse, conformability, and high tensile strength, making it a technical tape suitable for demanding environments.
It allows for:
- better resistance to wear
- limiting accidental tears
- maintaining its stability in process
- to ensure a better lifespan in application
Good resistance to chemicals
This property makes the product even more versatile and reliable in industrial environments where solvents or chemical agents may be present.
It allows for:
- use in processing environments
- better tape stability
- reduction of premature degradation
- greater flexibility of use
Productivity and performance
- excellent electrical insulation
- thermal resistance up to 260°C
- high mechanical resistance
- good chemical resistance
- suitable for masking, welding and winding
Insulation of coils, motors and transformers
TheB0204Mis particularly suitable for electrical insulation applications in electrotechnical equipment and components subjected to high thermal stress.
It allows for:
- coil insulation
- motor protection
- transformer insulation
- capacitor protection
Masking in electronics
This tape is suitable for masking operations in electronic environments, particularly when processes involve heat or require good protection precision.
It allows for:
- localized masking of sensitive areas
- protection of components
- good performance in electronic processes
- a reliable removal or retention depending on use
Powder coating and thermal masking applications
Thanks to its temperature resistance, theB0204Mcan be used in masking operations before powder coating or in other industrial thermal processes.
It allows for:
- protecting unpainted areas
- maintaining precise contours
- withstanding thermal cycles
- improving finish quality
Welding protection and technical processes
TheB0204Mis also relevant in certain welding or manufacturing contexts where heat, solvents, and substrate stability are critical.
It allows for:
- protecting certain areas during welding
- isolating technical components
- supporting demanding manufacturing processes
- improving the reliability of operations
