The UB50 range is a professional manual tape dispenser for sealing multi-wall polycarbonate panels. It allows for the quick and precise application of aluminum or polyester tapes to the open edges of the honeycomb panels. Usable with one hand, it ensures a straight and centered application, regardless of the panel thickness, from 4 to 20 mm.
The UB50 accepts reels up to 140 mm with liner or 160 mm without liner on a 76 mm core. Robust and reliable, this metal reel is ideal for building professionals and greenhouse installers looking for a durable seal and a neat finish.
Designed for construction site, workshop and outdoor installation environments, the UB50 offers a practical, secure and efficient solution for sealing cellular polycarbonate sheets.
| Product reference | UB50-4 | UB50-6 | UB50-8 | UB50-10 | UB50-16 | UB50-20 |
|---|---|---|---|---|---|---|
| Compatible panel thickness | 4 mm | 6 mm | 8 mm | 10 mm | 16 mm | 20 mm |
| Maximum ribbon width | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| chuck diameter | 76 mm (3") | 76 mm (3") | 76 mm (3") | 76 mm (3") | 76 mm (3") | 76 mm (3") |
| Maximum coil diameter | 140–160 mm | 140–160 mm | 140–160 mm | 140–160 mm | 140–160 mm | 140–160 mm |
| Weight | 1.545 kg | 1.545 kg | 1.545 kg | 1.545 kg | 1.545 kg | 1.545 kg |

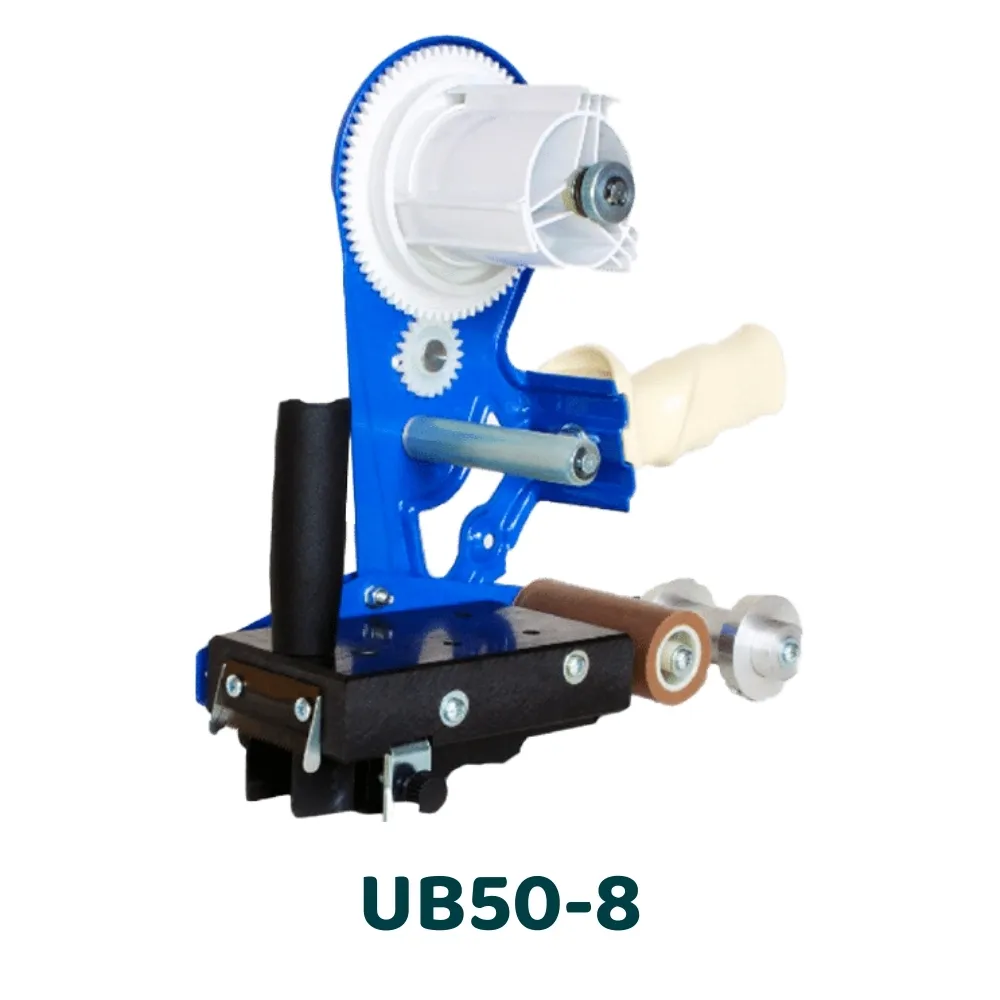

Manual dispensers for sealing polycarbonate panels - UB50 range – UB50-4 to UB50-20
The UB50-4, UB50-6, UB50-8, UB50-10, UB50-16, and UB50-20 are professional manual dispensers specifically designed for applying aluminum or polyester tapes, with or without a liner, to multi-wall polycarbonate sheets. They allow for sealing open cells to prevent the infiltration of insects, dust, or impurities, particularly in greenhouses, shelters, and glazed structures.
Usable with one hand, the UB50s ensure quick, straight and secure application of metallic tapes that are often difficult to handle manually.
Robust and secure design
The UB50 range features a reinforced steel structure, stiffened by deep ribs, guaranteeing excellent resistance in industrial environments and on construction sites.
The UB50s include:
a serrated blade made of hardened carbon steel for a clean and durable cut
adjustable brakes on the reel holder and on the liner collector
a soft rubber applicator roller for even application
centering rings to perfectly align the ribbon
The device can be configured for tapes with or without a liner, via a simple and quick modification of the internal system.
Precise application depending on the panel thickness
Each UB50 model is calibrated according to the panel thickness, from 4 to 20 mm, to ensure precise guidance and uniform application of the tape on the open edge.
This design allows for:
a perfectly centered pose
a uniform application across the entire length of the panel
improved sealing quality
a clean and even finish
a reduction in manual rework
This precision is essential to preserve polycarbonate sheets exposed to outdoor environments in the long term.
Compatibility and capacity
The UB50s are designed for panels of specific thickness depending on the model, from 4 to 20 mm.
They agree:
a ribbon width of up to 50 mm
a maximum outside diameter of 140 mm with liner
a maximum outside diameter of 160 mm without liner
a standard 76 mm chuck
A UB75 version is available for wider tapes.
Ideal solution for building professionals
The UB50 perfectly meets the needs of professionals seeking a fast, safe and precise method for sealing alveolar plaques.
They are particularly suitable:
to greenhouse installers
to building professionals
to installers of glass roofs and shelters
to the panel processing workshops
to construction sites requiring a clean and durable finish
Key Benefits
fast and professional application of aluminum tapes
optimal sealing of polycarbonate sheets
reduction of the risk of cuts from metal ribbons
ultra-robust steel structure
simple and secure use
ideal solution for greenhouse installers and building professionals
Reliable, powerful and suitable for industrial production, the UB50 manual reels are an effective solution to guarantee the protection and durability of multi-wall polycarbonate panels.
UB50 manual reels for sealing polycarbonate panels
The UB50 manual tape dispensers are specifically designed for sealing openings in multi-wall polycarbonate sheets, glazing, and translucent structures. Their function is precise: to apply aluminum or polyester tape to the open edges to prevent the infiltration of dust, dirt, insects, or particles.
Tool specifically designed for sealing polycarbonate panels
The UB50s are particularly used for:
multi-wall polycarbonate sheets
agricultural and horticultural greenhouses
shelters, glass roofs and translucent roofs
glazed structures exposed to external environments
They allow for an airtight closure of the cells, improving the durability of the panels and preserving light transmission, particularly in agricultural environments.
Secure application of aluminum tapes
Manually applying aluminum tape can be tricky and cause cuts. The UB50 dispenser offers:
a straight and centered placement of the ribbon
safe handling of metal strips
a reduction in the risk of injury
a fast and professional application
This solution improves both the quality of installation and the operator's working comfort.
Designed for specific and intensive use
Its reinforced steel structure makes it perfectly suited:
to the installation sites
to greenhouse facilities
to industrial environments
to the panel processing workshops
for repetitive applications over long distances
This robustness guarantees good durability over time, even under intensive use.
Simplicity and efficiency
The UB50s are designed to offer:
intuitive one-handed operation
an even application thanks to the flexible rubber roller
a clean cut via a serrated carbon steel blade
a reliable solution for aluminum tapes with or without liner
Specific, robust and secure, the UB50 manual reels constitute an essential professional solution to guarantee the durable sealing of polycarbonate sheets and prevent any harmful infiltration.
Advantages of UB50 manual reels
The UB50 manual tape dispensers are designed to ensure fast, secure, and perfectly centered application of aluminum or polyester tapes onto multi-wall polycarbonate panels. Their robust industrial design makes them reliable tools for greenhouse installers, facade contractors, and building professionals.
Precise and professional application
The main advantage of the UB50 lies in their ability to guide the tape exactly to the center of the edge of the panel, depending on its thickness from 4 to 20 mm.
They allow:
a straight and even pose
optimal sealing of the cells
a clean and even finish
a considerable time saving compared to manual installation
This precision is essential to preserve light transmission and prevent any infiltration of insects or dust.
Increased safety when installing aluminum tapes
Aluminum tapes can be sharp and difficult to handle by hand.
The UB50s offer:
safe handling of metal strips
a reduction in the risk of cuts
a controlled application
better protection for the operator
more comfortable use over long periods
This enhanced safety is a significant advantage for demanding construction sites and environments.
Controlled unwinding and even application
Adjustable brakes located on the reel holder and on the liner take-up unit allow for precise control of the tape unwinding.
This feature allows you to:
improved regularity of output
a reduction of excess band
a uniform application of the tape
improved application quality
an adaptation to ribbons with or without liner
The soft rubber applicator roller completes the device to ensure uniform application on the edge of the panel.
Industrial robustness
The reinforced steel structure, stiffened by deep ribs, ensures:
excellent impact resistance
good performance in outdoor environments
significant longevity
an adaptation for intensive professional use
This robustness makes the UB50 a reliable piece of equipment for repetitive applications on site or in the workshop.
Compatibility and versatility
The UB50 allows the use of aluminium or polyester tapes with or without liner, depending on the application requirements.
They agree:
ribbon widths up to 50 mm
reels with liner up to 140 mm
linerless reels up to 160 mm
a standard 76 mm chuck
This compatibility allows for good flexibility of use across different consumable references.
Key Benefits
centered and precise application according to the panel thickness
durable sealing of the cells
reduction of risks associated with handling metallic ribbons
Robust structure for heavy-duty use
controlled and homogeneous unwinding
A reliable solution for building and greenhouse professionals
The UB50 manual dispensers thus constitute a high-performance, durable and secure solution for the professional sealing of multi-wall polycarbonate panels.
Using UB50 manual reels
The UB50 dispensers are designed for the precise application of aluminum or polyester tapes, with or without a liner, onto multi-wall polycarbonate sheets. They are easy to use and provide a clean and airtight seal for open edges.
Applying the tape to the polycarbonate panel
Once the reel is correctly installed on the UB50 reel:
Position the polycarbonate sheet in the device guide, aligning it with the corresponding thickness.
grasp the main handle of the manual shutter
position the front of the reel at the level of the end of the panel
Lower the device slightly to engage the tape on the edge
Pull the reel along the entire length of the panel while maintaining even pressure.
Leave the soft rubber applicator roller to ensure even adhesion of the tape
Use the second handle if needed to improve stability and guidance
The cut is made at the end of the application thanks to the serrated blade made of reinforced carbon steel.
Setting up and loading the reel
Before first use:
Place the aluminum or polyester roller onto the 76 mm main mandrel
check that the reel is oriented correctly, with unwinding in a counter-clockwise direction
guide the end of the ribbon over the first white plastic drive roller
pass the belt under the soft rubber drive roller
Bring the ribbon up to the cutting area under the serrated blade.
adjust the adjustable brakes if necessary
Your UB50 reel is now ready to operate.
Maintenance and cleaning
The UB50 reels require very little maintenance thanks to their reinforced steel structure.
It is recommended to:
Clean the serrated blade occasionally
remove any remaining glue
check that the brakes are working properly
Keep the guide elements clean to maintain accurate positioning
Their robust design makes them particularly suitable for industrial environments and outdoor construction sites.
Spare parts and maintenance
DERFI has all spare parts for UB50 reels and ensures the rapid supply of the necessary components to guarantee the continuity of your installations.
The technical department also provides:
assistance in choosing the model according to the panel thickness
the replacement of wear components
technical monitoring of devices
Optimizing application stations on site or in the workshop
These services guarantee the longevity and optimal performance of your UB50 manual dispenser for sealing multi-wall polycarbonate panels.
For the integration of this machine, DERFI supports you
Maintenance possible
Video test with samples
Spare parts in stock
Exploded view and video supports
