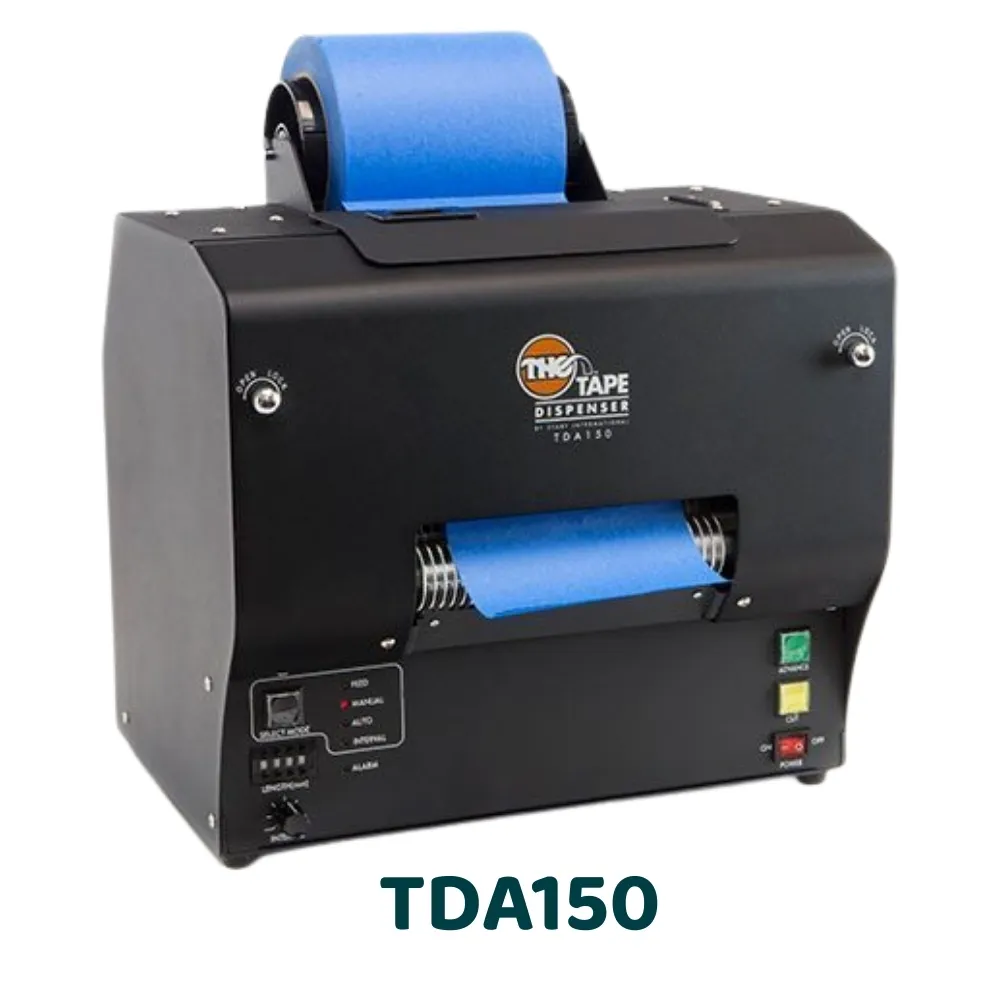

TDA - Secure industrial automatic tape dispenser

Automatic packaging tape dispensers TDA080 & TDA150

The TDA080 and TDA150 are automatic industrial tape dispensers designed for the precise, repetitive, and safe cutting of packaging tapes in professional environments. They meet the requirements of high-volume production requiring fast, consistent, and reliable dispensing of adhesive tapes.

Their compact size, robustness and numerous features make it possible to lighten the operator's workload while improving productivity on production lines, packaging stations, assembly workshops and preparation areas.

Automated and versatile distribution

The TDA080 and TDA150 ensure consistent and controlled dispensing of adhesive tapes in high-volume production environments. Thanks to their cut-to-length system, they standardize operations and reduce repetitive manual handling.

Two models are available:

• TDA080: for reels from 6.35 to 80 mm wide

• TDA150: for reels from 6.35 to 150 mm wide

This dual version allows it to meet both standard needs and applications using wider ribbons.

Four operating modes

The TDA080 and TDA150 offer four operating modes to adapt to all industrial production rates and applications:

• manual mode

• semi-automatic mode

• automatic mode

• automatic mode with time intervals

This flexibility allows for a fully customizable unwinding process, adapted to the production rate and the specific needs of each operator.

Compatibility and capacity

The TDA080 and TDA150 accept:

• ribbons from 6.35 to 80 mm for the TDA080

• ribbons from 6.35 to 150 mm for the TDA150

• cutting lengths from 40 to 9,999 mm

• rollers up to 230 mm in diameter for the TDA080

• rollers up to 251 mm in diameter for the TDA150

• a standard 76 mm chuck

They are compatible with a wide variety of industrial adhesive tapes, while being particularly suitable for packaging tapes.

Specific versions available

The TDA range can also be offered in specific versions depending on the application:

• ADHD: with program memorization

• TDA-NM: for protective films and masking tapes

• TDA-NSLF: for double-sided tapes and acrylic foams

These variants allow the equipment to be adapted even further to production constraints and the materials used.

Key Benefits

• Safe and precise automatic cutting

• Suitable for intensive and uninterrupted production

• Reduction of manual handling

• Wide compatibility of adhesive tapes

• Choice between two widths depending on the needs

• Multiple modes to adapt to every pace

Robust, precise and versatile, the TDA080 and TDA150 provide a high-performance solution for optimizing the distribution of packaging tapes in an industrial environment.

Automatic dispensers for heavy-duty packaging tapes

The TDA080 and TDA150 are designed to meet the demands of industrial environments requiring intensive and repetitive use of adhesive tapes. Their automated dispensing system ensures consistent, safe, and efficient cutting to a constant length.

These characteristics make it a particularly suitable solution for productions requiring regularity, pace and reliability.

Tools dedicated to industrial operations

The TDA080 and TDA150 are used in many sectors for:

• the assembly of parts

• the closing of cartons and other boxes

• the packaging

• masking

• the marouflage

• intensive conditioning operations

A solution suitable for wide and varied ribbons

One of the strengths of the TDA range lies in its ability to accommodate reels of different sizes and materials.

These reels allow you to:

• the use of ribbons up to 80 mm or 150 mm depending on the model

• the integration of wide packaging ribbons

• better adaptation to production needs

• greater versatility in industrial positions

Simplicity and efficiency

The TDA080 and TDA150 are designed to offer:

• a quick and even cutting of the ribbons

• a solution adapted to intensive production

• Ideal for use in packaging, conditioning and assembly

Versatile and robust, they provide a reliable solution for optimizing the distribution of adhesive tapes in demanding industrial environments.

Advantages of the TDA080 & TDA150 industrial automatic unwinder

The TDA080 and TDA150 were designed to offer an automated, precise, and secure solution for dispensing packaging tapes in industrial environments. Thanks to their various operating modes, they adapt to all production constraints.

Automatic unwinding and increased productivity

The main advantage of these industrial electronic unwinders lies in their automatic unwinding, designed to optimize throughput and reduce manual handling.

This automation allows:

• a reduction in labor for repetitive tasks

• an improvement in performance

• improved regularity of operations

• a reduction in downtime

Four operating modes

The TDA080 and TDA150 offer four modes to suit all applications.

Manual mode

In manual mode, the operator has complete control over the unwinding of the tape.

• The ribbon output is controlled via the ADVANCE button.

• the length is adjusted manually

• The cut is triggered with the CUT button

This method is particularly suitable for one-off cuts or non-standard lengths.

Semi-automatic mode

In semi-automatic mode:

• The operator presses ADVANCE to advance the tape

• The cutting is done automatically when the button is released.

This mode offers an excellent compromise between speed and flexibility.

Automatic mode

In automatic mode:

• The cutting length is defined via the digital setting

• simply remove the first strip

• The following ones are automatically delivered and cut.

This mode guarantees:

• perfect repeatability

• a significant time saving

• better standardization of lengths

Automatic mode with time intervals

This differentiating feature allows a time interval to be defined between each distribution.

The dispenser automatically delivers a piece of tape at each programmed interval, for example:

• 10 seconds

• 15 seconds

• 20 seconds

This mode allows the operator to perform other tasks simultaneously and is particularly suitable for multi-operation workstations.

Cutting precision

The TDA080 and TDA150 ensure a cutting accuracy of ± 1 mm, which varies depending on the type of tape used.

This precision allows us to:

• improved cutting consistency

• a reduction of defects

• a decrease in recoveries

• a control of material waste

For technical adhesives such as acrylic foams, the TDA-NSLF version is recommended.

Key benefits for industrial production

• increased efficiency through automation

• precision and consistency of lengths

• versatility on many adhesives

• enhanced security

• industrial durability

• easy integration into existing workstations

• better profitability

• flexibility of use according to production rates

Robustness and durability

The TDA080 and TDA150 are designed for heavy and prolonged use.

They offer:

• a robust structure

• operational stability

• good wear resistance

• an adaptation to daily industrial constraints

Reliable, precise and efficient, the TDA080 and TDA150 are an ideal solution for optimizing the distribution of packaging tapes on intensive production lines.

Using the TDA080 & TDA150 Automatic Tape Dispenser

The TDA080 and TDA150 are designed for the automatic and secure dispensing of adhesive tapes at production, packaging, and assembly stations. Their intuitive operation allows for quick implementation and use adapted to different work rhythms.

Power on

To start the device:

1. turn on the ON/OFF switch located on the dispenser

2. turn the device on

Inserting the roll of ribbon

1. Insert the roll of adhesive tape into the removable roll holder

2. It is possible to install up to two rollers simultaneously if necessary.

3. orient the end of the ribbon towards the feed rollers

Loading the ribbon

1. Place the end of the ribbon between the two feed rollers.

2. Press the ADVANCE key to advance the ribbon

3. position the ribbon correctly in the system

This step prepares the dispenser for distribution.

Operating mode selection

Once the ribbon is loaded, select the appropriate operating mode:

• manual mode

• semi-automatic mode

• automatic mode

• automatic mode with time intervals

Distribution process

Manual mode

1. Press ADVANCE to advance the ribbon

2. Press CUT to perform the cut

Semi-automatic mode

1. Press ADVANCE to advance the ribbon

2. release the key

3. the cutting is done automatically

Automatic mode

1. adjust to the desired length

2. retrieve the first ribbon

3. the following ones are automatically distributed with the same length

Interval Mode

1. set the desired interval

2. The dispenser automatically delivers the ribbons at the programmed times.

Extinction

Once the operation is complete:

1. Set the ON/OFF switch to OFF

2. turn off the distributor

Spare parts and maintenance

DERFI offers all spare parts for the TDA080 and TDA150.

The technical department also provides:

• device maintenance

• component repair

• the supply of replacement parts

• the liner recovery system available separately

These services guarantee the longevity and optimal performance of your automatic tape unwinder in an industrial environment.
