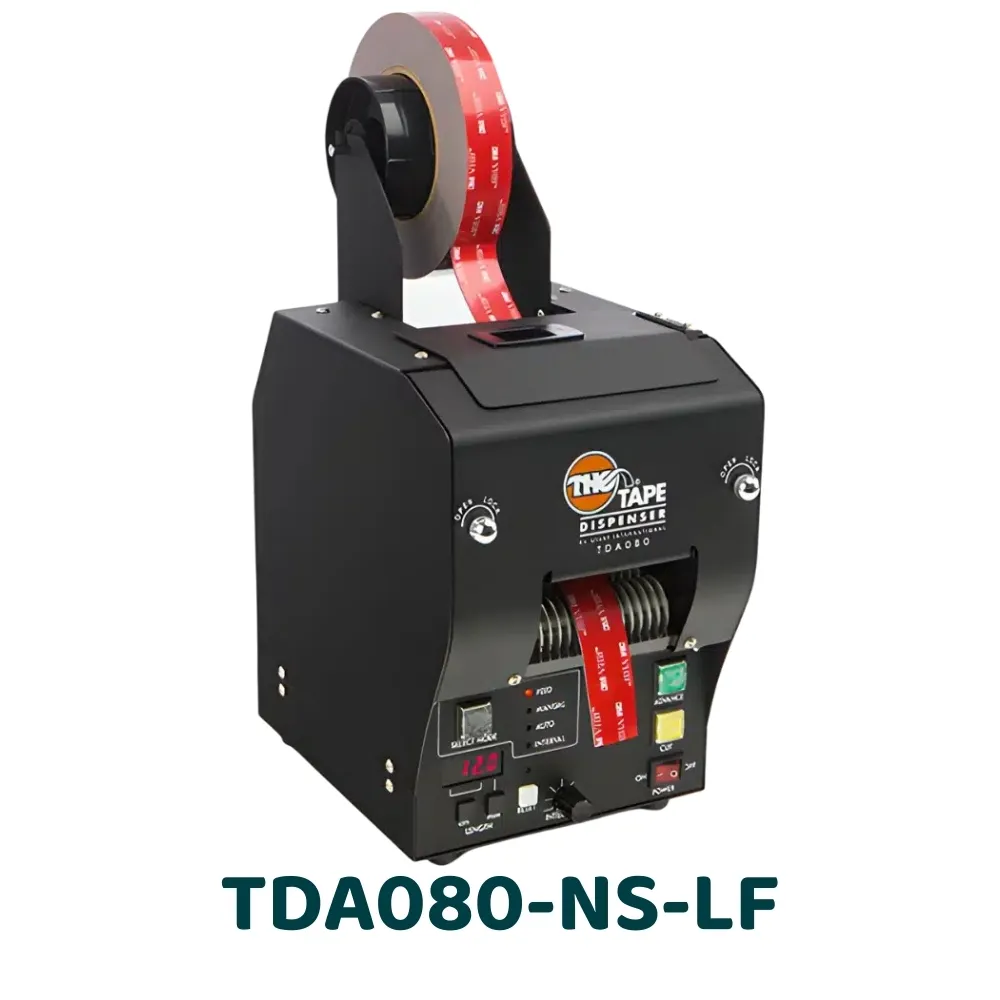

TDA-NS-LF - Automatic double-sided adhesive tape dispenser

Automatic industrial tape dispensers for technical tapes TDA080-NS-LF & TDA150-NS-LF

The TDA080-NS-LF and TDA150-NS-LF are industrial automatic dispensers designed for the precise, repetitive, and safe cutting of technical adhesive tapes in professional environments. They allow for the efficient dispensing of high-adhesion double-sided tapes, acrylic foams, and textile tapes on intensive production lines.

Belonging to the TDA family, they retain the robustness and advanced features of the range, with the major advantage of being able to handle tapes that are difficult to unwind and cut. They thus constitute a reliable solution for demanding industrial applications requiring consistency, safety, and performance.

Automated dispensing for demanding ribbons

The TDA080-NS-LF and TDA150-NS-LF are specifically designed for the repeated and precise dispensing of high-adhesion technical tapes to length. Their system ensures consistent and controlled cutting, perfectly suited to demanding industrial environments.

Two models are available:

• TDA080-NS-LF: for reels from 6.35 to 80 mm wide

• TDA150-NS-LF: for reels from 6.35 to 150 mm wide

This dual version allows it to meet both standard needs and applications using wider technical ribbons.

Four operating modes

The TDA080-NS-LF and TDA150-NS-LF offer four operating modes to adapt to all industrial production rates and applications:

• manual mode

• semi-automatic mode

• automatic mode

• automatic mode with time intervals

These modes offer fully customizable unwinding, effectively supporting the operator at each stage of the assembly line.

Compatibility and capacity

The TDA080-NS-LF and TDA150-NS-LF accept:

• ribbons from 6.35 to 80 mm for the TDA080-NS-LF

• 6.35 to 150 mm tapes for the TDA150-NS-LF

• cutting lengths from 40 to 9,999 mm

• rollers up to 220 mm in diameter

• a standard 76 mm chuck

They are compatible with a wide variety of technical tapes, including:

• high-adhesion double-sided tapes

• acrylic foams

• tear-resistant textile ribbons

• technical ribbons with liner

Multiple reels can be used

Thanks to their specific design, these automatic reels also allow the use of several reels simultaneously.

This configuration allows:

• a time saving on production workstations

• greater flexibility of use

• the ability to work with multiple references

• productivity optimization for one or more operators

Specific versions available

The TDA range can also be offered in specific versions depending on the application:

• TDA: standard version for packaging tapes

• TDA-M: Standard version with programmable memory

• TDA-NM: for protective films and masking tapes

• TDA-NS-LF: for double-sided tapes, acrylic foams and textile tapes

These variants allow the equipment to be adapted to the materials used and the production constraints.

Key Benefits

• Precise and secure automatic cutting

• Suitable for high-adhesion technical tapes

• Reduction of manual handling

• Highly compatible with double-sided tape and acrylic foams

• Choice between two widths depending on the needs

• Multiple reels can be used simultaneously

Robust, precise and efficient, the TDA080-NS-LF and TDA150-NS-LF are an ideal solution for optimizing the distribution of technical tapes in an industrial environment.

Automatic dispensers for high-adhesion technical tapes

The TDA080-NS-LF and TDA150-NS-LF are designed to meet the demands of industrial environments requiring intensive and repetitive use of demanding technical tapes. Their specific design ensures smooth, consistent, and secure dispensing of materials that are difficult to unwind.

These characteristics make it a particularly suitable solution for productions requiring precision, speed and reliability on double-sided tapes, acrylic foams and textiles.

Tools dedicated to industrial operations

The TDA080-NS-LF and TDA150-NS-LF are used in many sectors for:

• the assembly of mechanical parts

• the packaging

• the closing of boxes and cartons

• fixing materials onto rigid or flexible surfaces

• the marouflage

• the application of masking films

• repetitive industrial operations on technical tapes

Solution adapted to wide and technical ribbons

Another key aspect of these industrial automatic reelers is their ability to accommodate reels of varying dimensions and materials, while ensuring precise cutting to length.

They allow:

• the use of reels up to 80 mm or 150 mm wide depending on the model

• the integration of double-sided tapes with liner

• better adaptation to production needs

• an even distribution on materials with high adhesion

The TDA150-NS-LF is particularly suited to applications such as carpet laying, wall fixing of bulky parts or operations requiring high adhesion.

Simplicity and efficiency

The TDA080-NS-LF and TDA150-NS-LF are designed to offer:

• a quick and even cutting of technical ribbons

• a solution adapted to intensive production

• Ideal for industrial assembly, fastening and packaging

Versatile and robust, they provide a reliable solution for optimizing the distribution of technical tapes in demanding industrial environments.

Advantages of the TDA080-NS-LF & TDA150-NS-LF Industrial Automatic Wire Dispenser

The TDA080-NS-LF and TDA150-NS-LF were designed to offer an automated, precise, and secure solution for dispensing technical tapes in industrial environments. Thanks to their automatic unwinding system and various operating modes, they adapt to all production constraints.

Automatic unwinding and increased productivity

The main advantage of these industrial electronic unwinders lies in their automatic unwinding, designed to optimize production rates and reduce manual handling.

This automation allows:

• a reduction in repetitive tasks

• an improvement in performance

• improved regularity of operations

• a reduction in downtime

Four operating modes

The TDA080-NS-LF and TDA150-NS-LF offer four modes to suit all applications.

Manual mode

In manual mode, the operator has complete control over the unwinding of the adhesive tape.

• The tape output is controlled via the ADVANCE button.

• the length is adjusted manually

• The cut is triggered manually using the CUT button

This mode is particularly suitable for spot cuts, adjustments or non-standard lengths.

Semi-automatic mode

In semi-automatic mode:

• The operator presses the ADVANCE key to advance the ribbon

• The cutting is done automatically when the command is released.

This mode offers an excellent compromise between speed and flexibility, ideal for repetitive operations of varying length.

Automatic mode

In automatic mode:

• The cutting length is defined via the digital setting

• simply remove the first strip

• The following ones are automatically delivered and cut.

This mode guarantees:

• perfect repeatability

• consistent quality

• a significant time saving on the production lines

Automatic time interval mode

This differentiating feature allows a time interval to be defined between each distribution.

The dispenser automatically delivers a piece of tape at each programmed interval, for example:

• 10 seconds

• 15 seconds

• 20 seconds

This mode is ideal for multi-operation workstations or synchronized production rates.

Cutting precision

The TDA080-NS-LF and TDA150-NS-LF ensure a cutting accuracy of ± 1 mm, which varies depending on the type of tape used.

This precision allows us to:

• improved cutting consistency

• a reduction of defects

• a decrease in recoveries

• a control of material waste

For acrylic foams or high-adhesion tapes, the TDA-NS-LF version is particularly recommended to ensure a regular and optimal cut.

Key benefits for industrial production

• increased efficiency through automation

• precision and consistency of lengths

• versatility across many technical ribbons

• enhanced security

• industrial durability

• easy integration into existing workstations

• better profitability

• flexibility of use according to production rates

Robustness and durability

The TDA080-NS-LF and TDA150-NS-LF are designed for heavy and prolonged use.

They offer:

• a robust structure

• operational stability

• good wear resistance

• an adaptation to daily industrial constraints

Reliable, precise and efficient, the TDA080-NS-LF and TDA150-NS-LF are an ideal solution for optimizing the distribution of technical tapes on intensive production lines.

Using the TDA080-NS-LF & TDA150-NS-LF Automatic Technical Tape Dispenser

The TDA080-NS-LF and TDA150-NS-LF are designed for the automatic and secure dispensing of technical tapes at production, fastening, packaging, and assembly stations. Their intuitive operation allows for quick implementation and use adapted to different work rhythms.

Power on

To start the device:

1. turn on the ON/OFF switch located on the dispenser

2. turn the device on

Inserting the roll of ribbon

1. Insert the roll of adhesive tape into the removable roll holder

2. It is possible to install up to two rollers simultaneously if necessary.

3. orient the end of the ribbon towards the feed rollers

Loading the ribbon

1. Place the end of the ribbon between the two feed rollers.

2. Press the ADVANCE key to advance the ribbon

3. position the ribbon correctly in the system

This step secures the ribbon and prepares the dispenser for dispensing.

Operating mode selection

Once the ribbon is loaded, select the usage mode appropriate for your application:

• Manual mode: the operator manually controls the unwinding and cutting

• Semi-automatic mode: dispensing is triggered manually, cutting is done automatically

• Automatic mode: the ribbon length is programmed via digital adjustment; dispensing and cutting are fully automated.

• Automatic mode with time intervals: the distribution of the ribbons is carried out automatically according to a defined time interval

Distribution process

Manual mode

1. Press ADVANCE to advance the ribbon

2. Press CUT to perform the cut

Semi-automatic mode

1. Press ADVANCE to advance the ribbon

2. release the key

3. the cutting is done automatically

Automatic mode

1. adjust to the desired length

2. retrieve the first ribbon

3. the following ones are automatically distributed with the same length

Interval Mode

1. set the desired interval

2. The dispenser automatically delivers the ribbons at the programmed times.

Extinction

Once the operation is complete:

1. Set the ON/OFF switch to OFF

2. turn off the distributor

Spare parts and maintenance

DERFI offers all spare parts for the TDA080-NS-LF and TDA150-NS-LF.

The technical department also provides:

• device maintenance

• component repair

• the supply of replacement parts

• the liner recovery system according to needs

These services guarantee the longevity and optimal performance of your automatic technical tape dispenser in an industrial environment.
