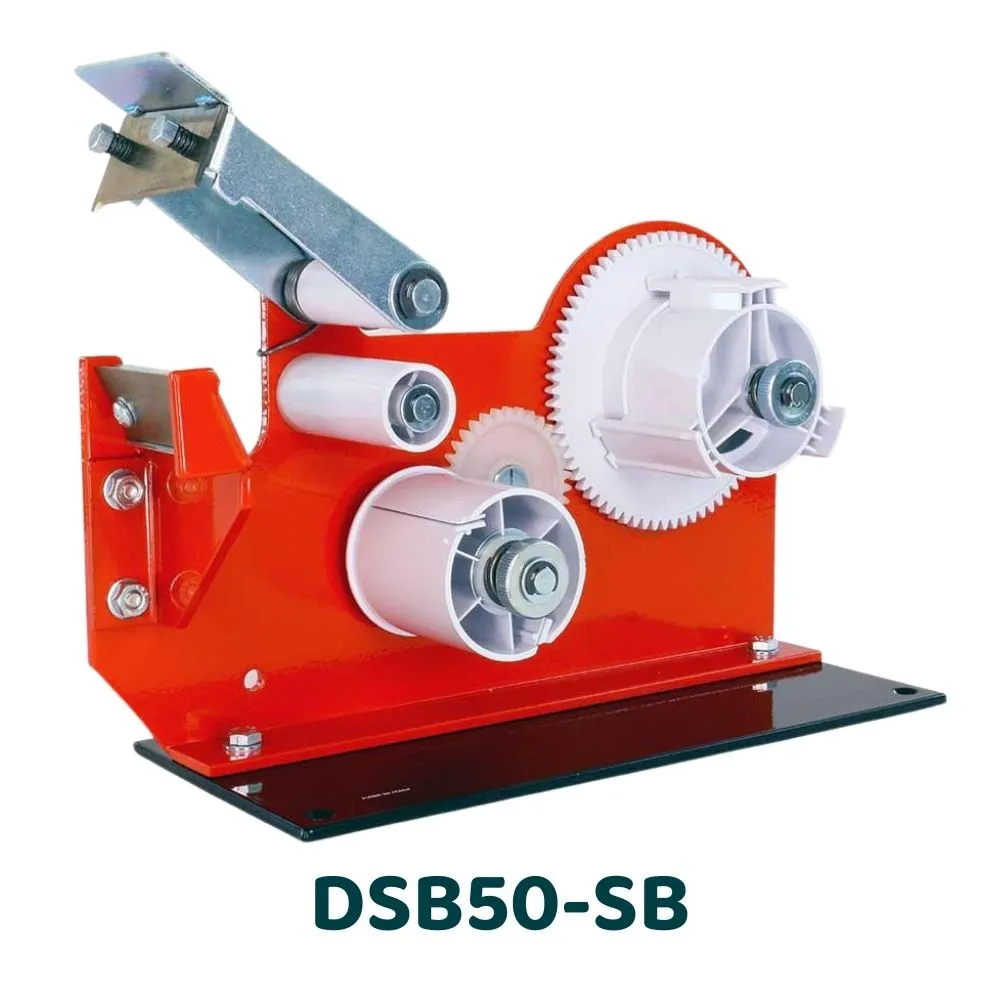

DSB-SB - Industrial thick adhesive liner dispenser

Industrial tabletop dispensers with liner separator - DSB50-SB & DSB50-SB-MS series – 50 mm

The DSB50-SB and DSB50-SB-MS are professional tabletop dispensers designed for dispensing double-sided or single-sided adhesive tapes with a protective liner. They automatically separate the protective film from the adhesive tape and rewind the liner onto a dedicated reel, delivering ready-to-use tape for faster and more ergonomic work in industrial environments.

More compact than some high-capacity ranges, the DSB accepts reels up to 160 mm outside diameter on a standard 76 mm core, offering an efficient solution for assembly, processing and packaging stations where space needs to be kept to a minimum.

Automatic liner separation

The main advantage of the DSB50-SB and DSB50-SB-MS lies in their integrated automatic liner separation system.

This technology allows:

• to automatically remove the protective film during operation

• to rewind the liner onto a dedicated reel

• to deliver only the ready-to-stick adhesive strip

• to avoid any manual handling of the protective film

• to significantly improve the ergonomics of the workstation

This feature provides significant time savings on repetitive gluing applications in the workshop and in production.

High-performance guillotine cutter

The key feature of the SB version is its guillotine cutting system with hardened steel scissor blades, designed to ensure a powerful, clean and durable cut on the most difficult ribbons.

This system allows for efficient cutting:

• the VHB

• Velcro

• acrylic foams

• the felts

• aluminum ribbons

• reinforced ribbons or fibers

This design is particularly suited to thick technical tapes and industrial applications requiring reinforced cutting.

Compact size and suitable capacity

The DSB50-SB and DSB50-SB-MS have been designed to offer a compact, stable and efficient benchtop solution, while maintaining a capacity compatible with many industrial needs.

They agree:

• ribbons up to 50 mm wide

• reels up to 160 mm in outside diameter

• a standard 76 mm chuck

This capacity perfectly matches the needs of compact workstations requiring a space-saving yet high-performance solution.

MS version with measured cut

The DSB50-SB-MS model incorporates a sliding arm with a measuring system allowing for repetitive cuts to a defined length.

This feature allows you to:

• repetitive cuts up to 500 mm

• better standardization of parts

• precise control of the unwinding process

• an optimization of serial production

This version is particularly suited to productions requiring regularity and repeatability.

Key Benefits

• automatic liner separation

• Powerful and precise paper cutter

• easy cutting of thick adhesives

• compact and stable format on a workbench

• MS version for repetitive cuts

• reliable solution for industrial production

Robust, precise and designed for intensive use, the DSB50-SB and DSB50-SB-MS are a high-performance solution for the controlled application of technical adhesive tapes with liner.

Tabletop dispensers for thick technical adhesives with liner

The DSB50-SB and DSB50-SB-MS are specifically designed for dispensing double-sided or single-sided adhesive tapes with a protective liner in industrial environments. Their main function is to automatically separate the liner from the adhesive tape to deliver a ready-to-use adhesive, simplifying the operator's work at a fixed workstation.

Tool dedicated to technical adhesives

The DSB50-SB series is particularly used for:

• the manufacture of self-adhesive paper and cardboard supports

• the assembly of technical parts

• the collage of elements from samples or catalogues

• packaging and conditioning operations

• cutting thick technical ribbons

They are perfectly suited to environments requiring precision, regularity and sustained pace.

Automatic liner separation and guillotine cutting

Applying thick double-sided tape manually can be cumbersome. The DSB50-SB offers:

• automatic liner retrieval with integrated rewinding

• a smooth and controlled distribution

• a guillotine cutter with hardened steel scissor blades

• Efficient cutting of thick adhesives such as VHB, foam, felt, Velcro, aluminum, or reinforced fibers

The DSB50-SB-MS version adds a measuring system with a sliding arm, allowing the repetitive distribution of predefined lengths up to 500 mm for series production.

Robust design for heavy-duty use

Thanks to their robust painted sheet metal structure and gear transmission, the DSBs are perfectly suited:

• to the industrial workshops

• at the assembly stations

• to the paper-cardboard conversion lines

• to environments requiring stability and durability

Their heavy base ensures good stability on the workbench and improves safety during use.

Simplicity and performance

The DSB50-SB series is designed to offer:

• ergonomic use on a workbench

• adjustable brakes to adjust the tape tension

• a reel capacity of up to 160 mm in diameter

• a reliable solution for ribbons up to 50 mm

Robust, precise and designed for industrial production, the DSB50-SB and DSB50-SB-MS are a high-performance solution for cutting and controlled application of technical adhesive tapes with liner.

Advantages of the DSB50-SB & DSB50-SB-MS Tabletop Wire Dispensers

The DSB50-SB and DSB50-SB-MS were designed to simplify the use of double-sided adhesive tapes with liner in industrial environments. Their integrated automatic protective film separation system delivers a ready-to-stick tape without manual liner removal.

Saving time and ease of use

Manually removing the liner can slow down production, especially during repetitive applications. The DSB50-SB allows for:

• immediate and automatic separation of the liner

• a smooth and controlled process

• a quick cut after length drawing

• a more ergonomic workstation

The operator simply pulls the strip to the desired length and then activates the cutter.

Powerful cutting power for thick adhesives

The DSB50-SB models are equipped with a guillotine cutter with hardened steel scissor blades, specially adapted for technical and thick ribbons.

This design allows for effortless cutting:

• the VHB

• Velcro

• acrylic foams

• the felts

• reinforced ribbons

• aluminum ribbons

A simple press on the paper cutter ensures a clean, straight and effortless cut.

MS version with measured cut

The DSB50-SB-MS models incorporate a sliding measuring arm that allows:

• repetitive cuts of defined length up to 500 mm

• a standardization of parts in production

• precise control of the unwinding process

This feature is particularly useful for repetitive productions requiring regularity and consistency.

Compact size and industrial robustness

Made from high-strength painted sheet metal, the DSBs are designed for intensive use while remaining compact.

They offer:

• good stability on a workbench

• a space-saving solution

• a robust structure suitable for everyday use

• a heavy sole ensuring stability and safety

This configuration is ideal for industrial environments where space needs to be optimized without sacrificing performance.

Adjustable brakes and controlled unwinding

An adjustable brake on the spool holder allows you to control the tension of the tape according to its weight, thickness or adhesion.

This feature allows you to:

• improved regularity of output

• a reduction of excess band

• improved working precision

• a cleaner and more controlled application

Key Benefits

• Automatic liner separation for immediate time savings

• high-performance guillotine cutter for thick technical adhesives

• MS version for repetitive cuts up to 500 mm

• robust structure made of painted sheet metal

• heavy sole ensuring stability and safety

• Reliable solution for assembly and technical applications

Compact, powerful and reliable, the DSB50-SB and DSB50-SB-MS tabletop dispensers offer a high-performance solution for cutting and controlled application of technical adhesive tapes with liner in industrial production.

Using the DSB50-SB & DSB50-SB-MS tabletop reels

The DSB50-SB and DSB50-SB-MS are designed for dispensing double-sided or single-sided adhesive tapes with liner, featuring automatic separation of the protective film. They are simple to use and perfectly suited for fixed industrial workstations.

Applying the adhesive tape

Once the coil is correctly installed:

1. pull the adhesive forward

2. allow the system to automatically separate the adhesive strip from its liner

3. guide the adhesive part towards the cutting area while the liner is rewound onto the rear reel

4. adjust to the desired length

5. proceed with the cutting by simply pressing on the scissor-bladed paper cutter

The cut is clean, precise and effortless, even for thick adhesives such as VHB, foam, Velcro, felt or aluminum.

For the MS version, simply position the sliding arm at the desired length to obtain repetitive and regular cuts up to 500 mm.

Setting up and loading the reel

Installation is quick:

1. place the spool on the 76 mm main hub

2. Ensure that the unwinding occurs from the top of the reel.

3. pass the adhesive over the top cylindrical roller

4. separate the adhesive strip from the liner

5. guide the adhesive strip towards the cutting area

6. Wind the liner alone onto the lower retrieval reel in the intended direction.

The reel is then ready for first use.

Adjusting the brakes and the measurement

To optimize usage:

• Adjust the adjustable brakes if the line unwinds too freely.

• On the MS version, adjust the desired length using the sliding arm.

• Check the regularity of the scrolling before repeating the sequences.

These settings help improve the accuracy, stability, and repeatability of applications.

Interview

DSBs are made of high-strength painted sheet metal and require very little maintenance.

It is advisable to:

• Clean the blades regularly to prevent glue buildup

• Check the brake settings if the line unwinds too freely.

• Perform occasional cleaning in case of intensive use

Their robust design guarantees a long service life in an industrial environment.

Spare parts and maintenance

DERFI has all spare parts for the DSB50-SB and DSB50-SB-MS hose reels:

• guillotine blades

• brakes

• axes

• gears

• mechanical components

Rapid parts supply ensures the continuity of your production and the long-term maintenance of your equipment.
