DC150/400

Safe-cutting manual dispenser for large tape rolls

The DERFI manual DC dispenser with safe-cut system has been designed for different types of adhesives and cut-outs: – In the automobile industry, the DC dispenser is perfectly adapted to treading.

French design made with stainless steel française en acier inox

Heavy duty cutting dispenser

Custom-size roll width

Suited for clean environments

Adjustable cutting stopper (optional)

Suited for industrial production

100% safe cutting system

Manufacturing on request upon request

Product variations

Max roll width (mm) :

Technical data
Product reference
Max roll width (mm)
Overall width
Max diameter of roll (mm)
Length
Width
Height
Weight (kg)
DC 150
150 mm
320 mm
350 mm
320 mm
270 mm
220 mm
5 kg
DC 400
400 mm
570 mm
350 mm
320 mm
570 mm
220 mm
7,5 kg
Description

This dispenser allows the unwinding of large widths (different from the standard model), to apply adhesive or regular plastic film on the desired surface. It can be used earlier in the production process, notably to protect components before painting, or later in the process, to lay adhesive tape on a finished product. Throughout the process, DERFI’s secure cutting system protects the operator. It was conceived to avoid all risks of finger-cuts or injuries during the use of the industrial manual dispenser.



The DC adhesive dispenser is also perfect for all uses in workshops managed by disabled people, ESAT, CAT or other reinsertion centers where safety is a crucial requirement. The DERFI wide roll adhesive dispenser protects the operator from common cutting risks.



All of the DC-type dispensers are made from stainless steel. Therefore, they are ideal for all uses in clean environments such as cafeterias and cleanrooms. They do not rust or deposit paint on the work surface and are easily cleaned.



Finally, the DC is very practical in the foodstuffs sector, notably to cut long lengths of tape, protective films or other surface-protective adhesives.

This secure-cutting dispenser for tape and adhesives requires almost no maintenance.

Feature

The DERFI manual DC dispenser with safe-cut system has been designed for different types of adhesives and cut-outs: – In the automobile industry, the DC dispenser is perfectly adapted to treading (Marouflage). This dispenser allows the unwinding of large widths (different from the standard model), to apply adhesive or regular plastic film on the desired surface. It can be used earlier in the production process, notably to protect components before painting, or later in the process, to lay adhesive tape on a finished product. Throughout the process, DERFI’s secure cutting system protects the operator. It was conceived to avoid all risks of finger-cuts or injuries during the use of the industrial manual dispenser.



The DC adhesive dispenser is also perfect for all uses in workshops managed by disabled people, ESAT, CAT or other reinsertion centers where safety is a crucial requirement. The DERFI wide roll adhesive dispenser protects the operator from common cutting risks.



All of the DC-type dispensers are made from stainless steel. Therefore, they are ideal for all uses in clean environments such as cafeterias and cleanrooms. They do not rust or deposit paint on the work surface and are **easily cleaned. **



Finally, the DC is very practical in the foodstuffs sector, notably to cut long lengths of tape, **protective films or other **surface-protective adhesives.



This secure-cutting dispenser for tape and adhesives requires almost no maintenance.

Benefits

These manual adhesive tape dispensers are ideal for an intensive production and can support large rolls (from 80 to 1400 millimeters). The reel’s diameter is therefore custom-made, the width of the roll can reach up to 1570 millimeters. The DC line of products is equipped with a Solingen blade and enables a clean and precise cut in both cutting directions.



The primary advantage of our DC adhesive dispenser resides in its sturdiness and its fully secure cut. The operator cannot be injured because the DC is designed in such a way that fingers cannot slide under the cursor by the cutting line. DERFI also offers you the possibility to customize the height, width or diameter of your industrial dispenser’s reel.



To make this cutting device compatible with all kinds of tape rolls, an adjustable brake can be installed to prevent the roll from being unwound too easily. The unwinding of your roll will be slowed down by the system at its main axis.



The great advantage of the DC manual dispenser is that it can accommodate all types of adhesive or non-adhesive tapes, including: Adhesive masking film, cardboard tape, insulating paper, protective film, masking tape, double-sided tape, etc. Our secure roll can even cut Sleeve and VHB.



The operator also has a wide range of options as to the width of the device and the diameter of its reel. This customization offers the DC user unparalleled comfort in the production process.



Finally, the DC manual dispensers are equipped with a Solingen blade incorporated into a secure cutting system. This dispenser is above all a handmade and custom-made product, ensuring its user a high quality, personalised and safe device.

Application

Using an industrial dispenser for wide tapes

The DC range includes the most resistant devices created by DERFI. Hand-Made in France, these stainless steel adhesive dispensers are extremely robust. They weigh between 4.5 and 12.0 kilograms, and are made from stainless steel. Virtually no maintenance is required for these devices. In addition to a natural stability due to their weight, these dispensers are mountable on tables and can be screwed onto workbenches. Furthermore, in order to prevent or reduce scratches on your equipment, DERFI offers an optional custom-machining of PVC or nylon parts to be placed on the dispenser. This will prevent any risk of scratches or damage to your work. DERFI also offers the possibility to add an adjustable brake on the DC range of products, to reduce the output speed of the adhesive tape and to increase the precision of the cutting. Please note that this equipment is required from the DC400 onwards.



Inserting and loading the roll

Once the cutting device is mounted on to a table, it is necessary to load the roll of adhesive onto the main hub (if the dispenser is a one-track cutter).

The hub is designed for intuitive and functional placement regardless of the adhesive tape or reel diameter. However, it is important to indicate the needed dimensions of the dispenser to us before the manufacturing process.

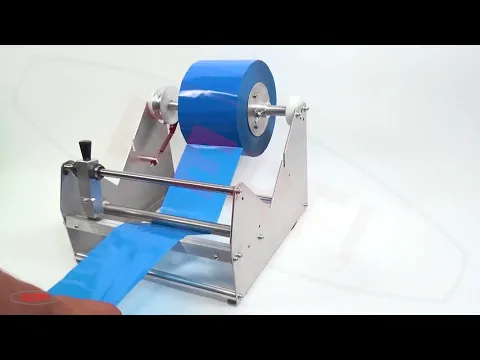

Place the roll around the hub installed on the top rod. Unwind the tape and pass it under the central cylindrical rod. Then place one end of the adhesive on the cutting base. All that remains is to slide the blade on the adhesive regardless of the cutting direction. Pull the strip to the desired length. Finally, slide the blade into the cutting line to retrieve the pieces of cut strips.



Please note that it is possible to integrate an adjustable cutting stop to the industrial dispenser in order to standardise the cutting lengths.



Maintenance

These dispensers require little to no maintenance. Depending on the type of adhesive, the adhesive may settle inside the cutting line. A stroke of white spirit will remove the residue from the manual adhesive dispenser.



Warranty

All DC range products have a 6-month warranty.
