DS25E

safe-cut system manual adhesive tape dispenser for small rolls

This stainless steel tape dispenser, manufactured in France by DERFI, is known for its stability and robustness, making it a reliable work tool that requires almost no maintenance.

Made in france

Stainless steel

Mountable on tables

Heavy duty cutting dispenser

Suited for clean environments

Suitible for industrial production

Exists in different versions

Solingen blade

Product variations

Technical data
Product reference
Reel diameter (mm)
Label width (mm)
Max diameter of roll (mm)
Length
Width
Height
Wieght (kg)
DS 25E
38 mm to 76 mm
25 mm
160 mm
162 mm
50 mm
110 mm
0,4 kg
Description

The DS25E is a manual tabletop single-track dispenser specifically designed for dispensing adhesive tapes. This stainless steel tape dispenser, manufactured in France by DERFI, is known for its stability and robustness, making it a reliable work tool that requires almost no maintenance.

The DS25E is also equipped with a secure cutting system that prevents any risk of accident during cutting, making it an ideal choice for industrial operators who want to cut scotch to length and make cable bundle ties or any other work requiring small pieces of tape. With its practical and secure features, the DS25E is an essential tool for any industrial company looking to optimize its adhesive cutting processes.

Feature

This DERFI adhesive tape dispenser is ideal for industrial production. It is very useful in several areas including:

 Sealing cardboard boxes

 Industrial labelling

 Packaging and conditioning

 Bindings on cable boards

 Binding of electrical cable bundles

Benefits

Traditional adhesive tape dispensers are often of sub-standard quality and are prone to wear. DERFI has therefore developed a range of extremely resistant and handmade dispensers, to ensure a reliable and robust product for all industrial operators.

This compact and light manual dispenser can be mounted to all kinds of tables or workbenches. However, the particularity of the DS range lies in the compatibility of its structure with various hub sizes, between 28 and 76 millimeters. Thus, the DS25E can accommodate adhesives of different natures with rolls less than or equal to 160 mm in diameter and 25 mm in width.



Another advantage of this adhesive dispenser is the quality of its materials. Being manufactured from stainless steel, this device will require virtually no maintenance.



The DERFI safe-cut system is another guarantee of the industrial potential of this product. Thanks to the system developed in our workshops, it is impossible for a DS operator to injure themselves while cutting adhesive tape. The two sliding rings at the cutting line have been designed in such a way that fingers cannot reach the blade. As such, this dispenser complies with the standards for use in CTA and ESAT centers for the disabled.



Finally, the DS25E is equipped with a triangular blade that enables fast and sharp cutting.

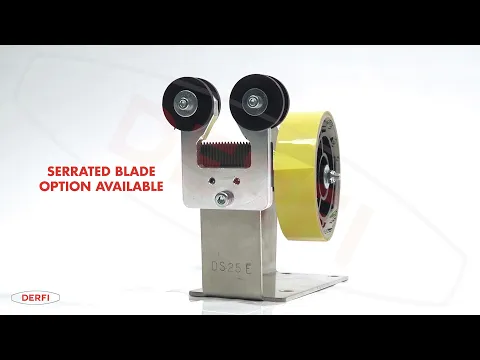

This efficient triangular blade is designed to increase production rates and as such is not recommended for applications that require perfectly clean, straight cuts. For applications where perfectly clean, straight cuts are necessary, rather go for the DS25ETB dispenser with a serrated blade.



This device the perfect companion for industrial operators wishing to increase their productivity. The DS25 adhesive tape dispenser ensures time savings and greater efficiency for all operators.

Application

Using an industrial dispenser for wide rolls of adhesive tape



Inserting and loading the roll

First, mount the adhesive dispenser onto a table or workbench by screwing it in place using the holes intended for this purpose that are located on the base of the device. Then place the adhesive around the hub, and bring the end of the roll of tape up to the blade. The first cut can now be made.



The hub support can be installed in both directions of the unit and is therefore suitable for both right-handed and left-handed users. It is also possible, thanks to our [custom manufacturing] service (Custom manufacturing page) to manufacture a “mirror” version of this dispenser so as to better suit left-handed people.



Once the roll of adhesive is in place, grasp the cutting handle and slide the blade over the tape. The Solingen blade effortlessly ensures a perfect cut regardless of the pressure exerted.



Maintenance

The DS25E dispenser requires little or no maintenance. Its stainless steel guarantees the unit’s durability and cleanliness over the years and despite intensive use.
