Protected manual adhesive tape dispenser 50mm wide

Product reference

Maximum roll width (mm)

Maximum roll diameter (mm)

Core diameter (mm)

Blade type

Weight (kg)

DS50TB

50 mm

160 mm

76 mm

Serrated blade

0,5 kg

DS25TB

25 mm

160 mm

76 mm

Serrated blade

0,4 kg

The DS50TB is a wider version of the DS25E tape dispenser. Designed with safety in mind, this handheld tape dispenser addresses a common issue by providing a safer way to cut 50mm wide tapes. Prioritizing safety, this dispenser features a blade protected by two rollers on either side of the cutting edge. With this dispenser, cutting 50mm wide tape pieces is no longer a challenge.

Robust stainless steel design
The only 50mm dispenser equipped with a protected cutting blade.
Mountable on tables or workbenches.
Option to fit 38mm hubs upon request.

This stainless steel adhesive tape dispenser is designed for the intensive handling of 50mm wide rolls of tape. Its purpose is to dispense pieces of tape repeatedly. It can be used for dispensing labels on rolls or with classic rolls of tape, and can be used to hang up posters etc…. Many users use this dispenser to close plastic bags, seal cartons or to tape shut fittings etc….

This tape dispenser is designed to improve the user’s comfort when handling adhesive tape. Most tape dispensers have exposed blades which significantly increases the risk of injury when the device is moved, rotated or simply when a piece of tape is retrieved from the dispenser.

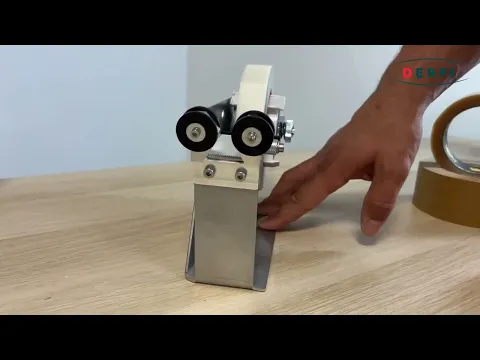

The DS50TB, on the other hand, features a protected blade which decreases the risk of injury when in use as the blade is partially covered.

The DS50TB is used extensively in workshops employing people with disabilities or in re-integration, as such, these dispensers are perfectly suited to all core businesses.

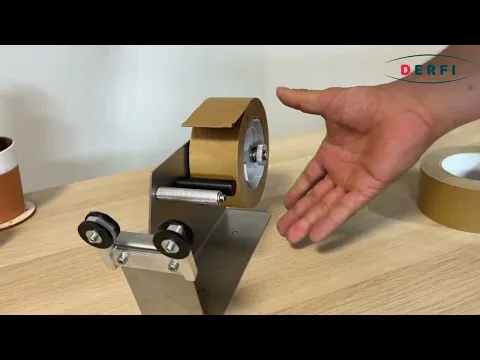

Setting up and loading the roll

Like with any dispenser, loading a new roll of adhesive is simple. It is important to ensure that the inner hub is of the correct size with regards to the roll of tape used. While this one-hand tape dispenser is designed for use with 50mm wide rolls of tape, it can be used with narrower rolls if needed. Once the roll of tape is loaded onto the hub, pull the end of the tape and place it under the black roller. The sticky part of the tape should be in contact with the knurled roller in order to bring the tape and blade into contact. This dispenser is now ready to use, all the user needs to do is to pull on the strip of tape and press it onto the blade slightly sideways in order to get a straight and clean cut.

How to use this one-handed manual adhesive tape dispenser

First of all, find a flat surface on which to place the dispenser. Holes are provided on the frame of the dispenser in order for it to be mounted onto a table or workbench. Make sure that the dispenser remains stable and is securely attached to the work surface. Once the device is ready, refer to the information above to safely load it with a roll of tape.

Spare parts and maintenance

After hundreds or even thousands of cuts, it is possible for the blade to lose its sharpness and become dull. Should this be the case, DERFI keeps stock of spare blades and spare parts. Simply contact us. Regarding maintenance for the DS50TB, make sure that the blade remains clean and that glue residue does not accumulate on the blade as this could lead to problems with cutting the tape.
