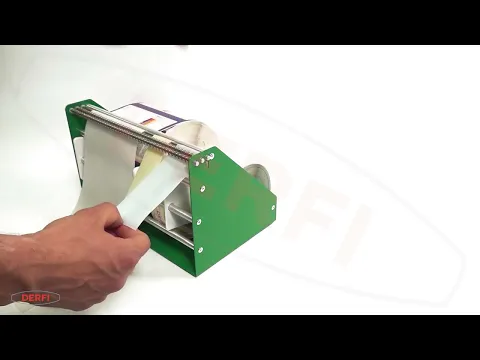

DMR280
Manual multi-roll label dispenser
The DMR 280 is a robust device dedicated to the manual distribution of adhesive stickers. This label can support up to 5 rolls of standard sizes. The separation of these coils is adjustable, offering the user of the DMR280 a wide range in the selection of the dimensions of each of the label rolls used.
Holds up to 5 reels
Made of rigid steel
Can be fixed on tables and in a vertical position
Maximum reel width: 265mm
Lightweight and portable (1.4kg)
Works with all types of labels
Multi-track manual labeling machine
Product variations
Technical data
Product reference
label width(mm)
Max diameter of roll (mm)
Reel diameter
Dimensions (WxDxH)
Weight
Include
DMR280
265 mm
175 mm
Whatever
180x280x180 mm
1,55 kg
5 tape separators
Description
This adhesive sticker dispenser is therefore an indispensable tool for tables and workbenches in workshops or within a small to medium industrial setup. The principle behind this device is rather straightforward: two rolls separate the labels from their lining.
- Versatile adhesive label dispenser
- Sturdy high capacity labelling device
- Suitable for small and medium production lines
Feature
This manual adhesive label dispenser is designed for the distribution of labels of various sizes and types. It is intended for industrial operators and artisans who handle, in the course of their work, various types of labels and who are seeking a versatile device capable of accommodating multiple rolls of self-adhesive stickers.
The DMR280 is therefore ideal for use in shipping areas, product packaging intended for sale, the application of barcodes, and other logistical labels.
Benefits
The DMR280 is a fast and versatile manual adhesive label dispenser. Ideal for industrial environments, it offers numerous advantages:
Automatic retrieval of labels without manual separation of the liner
- The device automatically separates the protective backing from the label.
- The operator only needs to take one label for the next to appear instantly.
Capacity to accommodate up to 5 standard-sized rolls
- Allows simultaneous distribution of self-adhesive stickers of different types, materials, and dimensions.
- Comes with roll separators for efficient management.
Robust design in rigid steel
- Resistant to time and wear from intensive use.
- Adapted to demanding industrial conditions.
Flexible mounting
- Can be fixed on vertical surfaces thanks to perforations on the base.
- Mounting on horizontal surfaces is possible but not essential.
Compatibility with various roll sizes
- Supports rolls up to 265 mm in width and 175 mm in outer diameter.
- Without a hub, it accommodates rolls with cores of all sizes.
Ingenious liner separation system
- Directs the labels and the liner in opposite directions.
- Allows peeling labels without tearing the liner or bending the stickers.
The DMR280 is the ideal tool for operators handling label rolls of various sizes and contents. Optimize your labeling process with this manual dispenser designed to meet the needs of industrial professionals.
Application
How to use this industrial dispenser of wide label coils?
The manual sensor of adhesive labelsDMR 280 is very easy to use. Once your rolls are installed on your device, all you need to do is pick up your labels. With each recovery, a new thumbnail will appear.
Setting up and loading the rool
First mount the device onto a flat surface: a table, wall or other vertical plane using the perforations on the sole of the device that are intended for this purpose.
Then place the roll of labels in the center of the unit so that the tape is distributed backwards when the hand dispenser is standing in front of the user.
Then bring the strip of labels back to the drive rollers and pass them between the first two metal rollers. Separate the label from the strip of liner. Then grasp the end of the strip of liner and pass it under the training rollers so as to ensure proper separation of the two materials. The roll is ready for its first use.
Maintenance and cleaning
This manual dispenser for round or square adhesive labels has been specially designed to withstand intensive industrial production. It thus requires practically no maintenance. Simply clean the device from time to time if there is a buildup of dirt.
Spare parts
DERFI offers all the components and spare parts for the DMR 280 manual dispenser. We deliver all spares on request, simply contact us by email, telephone or via our website.
