TDA080/150

Industrial automatic tape dispenser for packaging tape

The TDA automatic film dispenser has been specifically designed to meet the demands of high-volume production. It is perfectly suited for dispensing packaging adhesive tape.

Safe programmable electronic dispenser

Length-cutting dispenser

Max coil width 80mm or 150mm

Cutting length 40 to 9999mm

4 cutting modes

Mechanical trigger detection

3 blades available : smooth, serrated, fully serrated

Accessory : Trigger pedals

Product variations

Max roll width (mm) :

Technical data
PRODUCT REFERENCE
Max roll width (mm)
Cutting length (mm)
Reel diameter (mm)
Max outer roll diameter (mm)
Dimensions LxWxH (mm)
WEIGTH (kg)
TDA080
6 - 80 mm
40 - 9999 mm
76 mm
230 mm
170 x 230 x 310 mm
9,5 kg
TDA150
6 - 150 mm
40 - 9999 mm
76 mm
251 mm
330 x 254 x 330 mm
17 kg
Description

This compact and extremely robust automatic tape dispenser is equipped with a multitude of features designed to streamline the tasks of industrial operators. Therefore, this device is intended for repeated and precise dispensing of tapes of all sizes, from 6 millimeters up to 150 millimeters wide.



Two versions are available:

  • TDA080: Accommodates rolls from 6 to 80 mm wide
  • TDA150: Accommodates rolls from 6 to 150 mm wide



This industrial tape dispenser offers four modes* of operation:

  • Manual mode
  • Semi-automatic mode
  • Automatic mode
  • Automatic mode with time intervals

*(Find details of these modes in the “Avantage” section)



All these modes allow for personalized dispensing to assist the industrial operator at every stage of their assembly line.



Spare Parts and Maintenance

DERFI stocks all spare parts for the machine and also provides a repair service if needed. It is possible to acquire only the liner recovery system if necessary.



Also available:

With memory program : TDA-M

For protective film and masking tape: TDA-NM

For double-sided tape and acrylic foam: TDA-NSLF

Feature

This electronic tape dispenser for packaging tape is primarily designed for intensive industrial use. It is suitable for large-scale production operations that require regular handling of adhesive tapes. Therefore, it is an ideal product for assembling and cutting adhesive tape pieces, masking or masking, packaging, and closing cardboard boxes and other containers.



Another key aspect of this automatic tape dispenser lies in its ability to accommodate rolls of different sizes and materials.



The TDA can accommodate adhesive rolls up to 80mm or 150mm wide. This is a rare advantage among various industrial automatic tape dispensers. Additionally, the device is designed to support adhesive tapes with a maximum diameter of up to 230mm or 250mm, respectively.



Practically all types of adhesives are compatible with this automatic dispenser, but it is particularly suitable for packaging tapes.

Benefits

The first advantage of this electronic tape dispenser lies in its automatic dispensing of adhesive films. Thus, four modes are available on this device:



1- Manual mode:

In this mode, the unwinding of the adhesive tape is accompanied by the operator at every stage of the cutting process. The operator controls the adhesive output by pressing the ADVANCE button. To complete the cutting process, they activate the cutter by pressing the “Cut” button.



2- Semi-automatic mode:

Similar to the previous mode, this mode operates without programmable length. The length of the adhesive tape is estimated. The operator must first press the ADVANCE button to dispense the adhesive piece.

There is no need to manually cut here; the dispenser will automatically cut the tape once the ADVANCE button pressure is released.



3- Automatic mode:

Here, the system is fully automated. The operator simply needs to set the desired length of the adhesive tape using the digital adjustment button located above the digital panel. Once the length is determined, simply retrieve the first strip for the second to be automatically dispensed.

No manual interaction is required for unwinding or cutting.



4- Interval mode:

This is one of the great features of the TDA. It allows its operator to set a time measure corresponding to the interval between each distribution. In this way, a new piece of tape can be dispensed every 10s, 15s, 20s, etc., allowing the operator to perform another task during this interval.



Furthermore, as mentioned earlier, it is possible to determine a cutting length. This is a significant advantage for activities that require precise and regular cutting of adhesive tapes. In automatic mode, the electronic dispenser will only dispense pieces according to the recorded length. This functionality represents a significant time-saving for its user.



It should be noted that the TDA ensures a 1 mm tolerance in the precision of its cuts depending on the type of adhesive. For example, for an acrylic foam tape, we recommend using the TDA-NSLF.

Application

How to use this dispenser:



1- Power On: Begin by switching on the ON/OFF switch located on the dispenser to power it up.

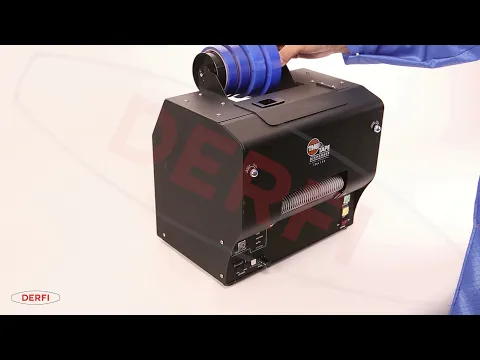

2- Inserting the Tape Roll:



    • Start by inserting the adhesive tape roll into the removable roll holder of the dispenser. It’s possible to insert two rolls simultaneously if needed
    • Ensure that the tape end is positioned towards the two feed rollers.



3- Loading the Tape:

    • Once the tape roll is inserted, place the end of the tape between the two feed rollers.
    • Press the ADVANCE button to feed the tape into the two feed rollers. This action will secure the tape in place and prepare it for dispensing.

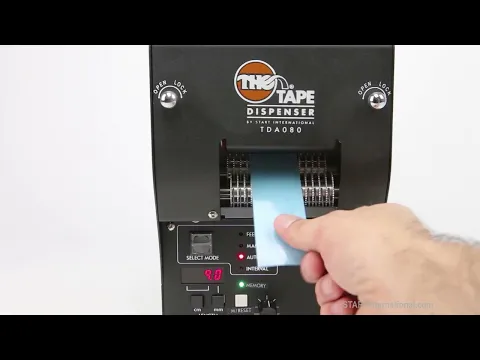

4- Mode Selection: Once the dispenser is powered on and loaded with the tape, you need to select the appropriate mode for your task. You have four options:



    • Manual Mode: In this mode, the operator controls the dispensing and cutting process manually.
    • Semi-automatic Mode: This mode operates without programmable length. The operator initiates the dispensing manually, and the dispenser automatically cuts the tape after dispensing.
    • Automatic Mode: In this fully automated mode, the operator sets the desired length of the adhesive tape using the digital adjustment button.
    • Automatic Mode with Time Intervals: This mode allows the operator to set time intervals between each tape dispensing action.



5- Dispensing Process:

    • Manual Mode: Press the ADVANCE button to dispense the tape. Once the desired length is dispensed, press the CUT button to cut the tape.
    • Semi-automatic Mode: Press the ADVANCE button to dispense the tape. The dispenser will automatically cut the tape after dispensing once the ADVANCE button pressure is released.
    • Automatic Mode: Set the desired length of the adhesive tape using the digital adjustment button. Once set, retrieve the first dispensed tape, and the dispenser will automatically dispense the next tape of the same length.
    • Automatic Mode with Time Intervals: Set the desired time interval between each tape dispensing action using the digital adjustment button. The dispenser will dispense tapes at the specified intervals automatically.



6- Switch Off: Once you have completed your task, switch off the ON/OFF switch to power down the dispenser.
